Repair Procedures: Removal

Turn the ignition switch OFF, and then remove battery (-) terminal.
Remove the rear seat cushion. (Refer to Body - "REAR SEAT ASSEMBLY ")

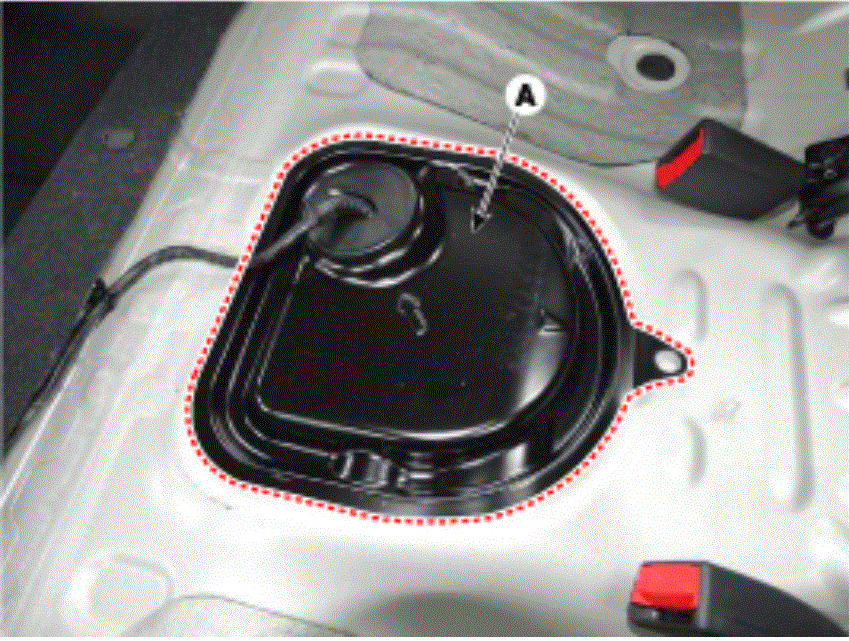

Remove the fuel pump service cover (A).

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect the fuel pressure sensor connector.

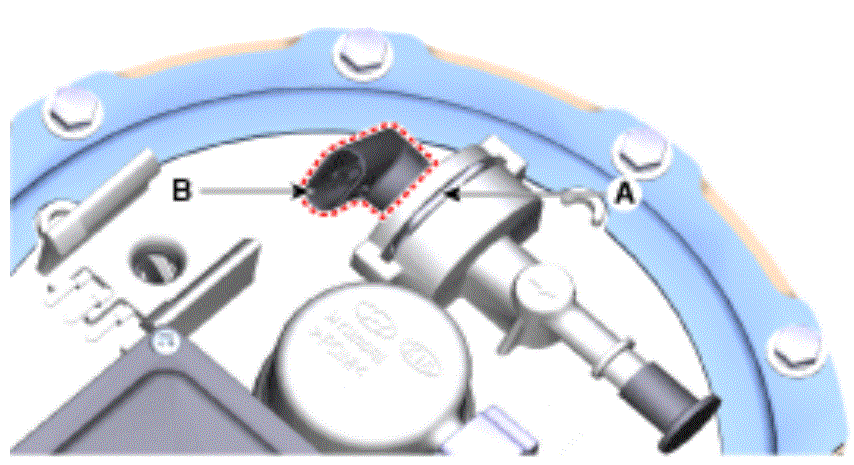

Remove the fuel pressure sensor fixing pin (A).
Remove the fuel pressure sensor (B) from the fuel pump.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
