Repair Procedures: Removal

  1. Remove the fuel pump. (Refer to Fuel Delivery System - "FUEL PUMP ")

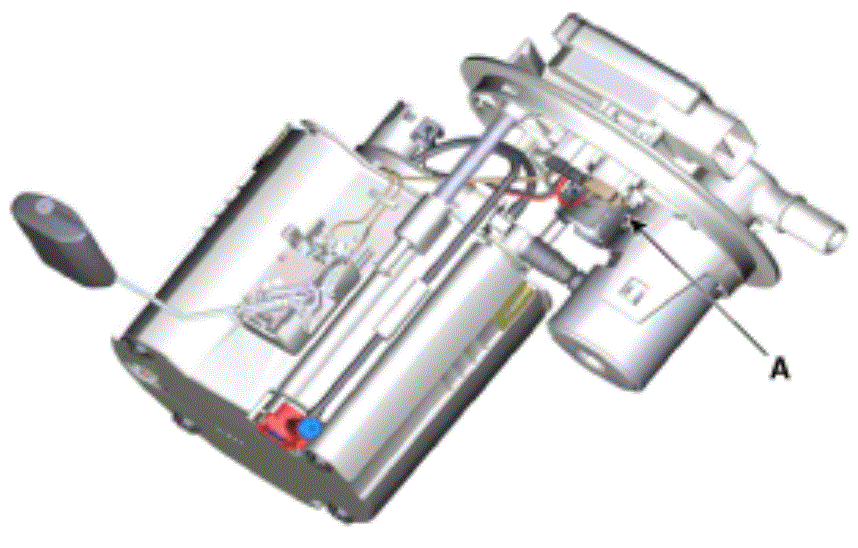

  2. Disconnect the fuel sender connector (A).
    G15472226Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

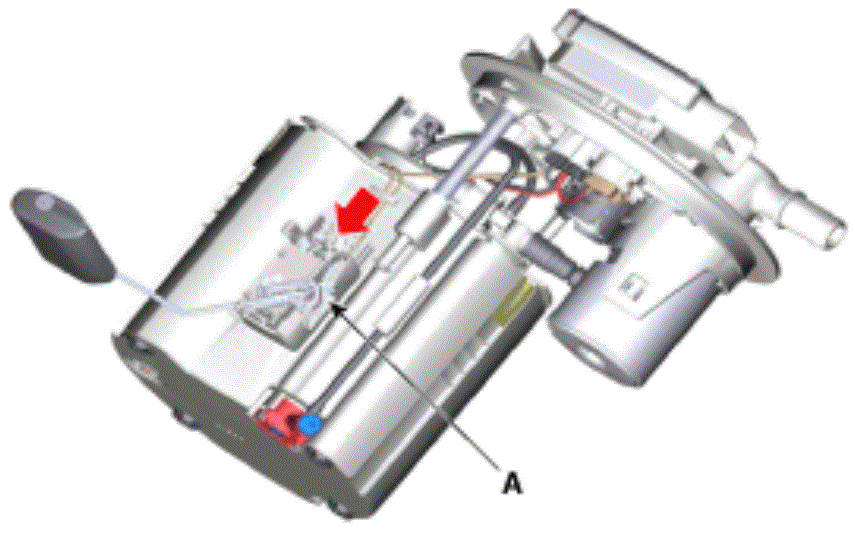

  3. Press the fixing hook (A) with a driver and then remove fuel sender in the arrow direction.
    G15472227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
