Repair Procedures: Installation

  1. Turn the steering wheel so that the front wheels can face straight ahead.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Assemble the neutral state clock spring.
    • New clock spring is supplied with neutral pin inserted.
    • If white cable is visible through the product's 5 O' Clock Neutral Check Window, then the spring is at neutral.
    • If white cable is not visible through the product's 5 O' Clock Neutral Check Window, then manually adjust the setting to neutral.
    Neutral Check Window: Normal Neutral Check Window: Fault
    G15483234Courtesy of HYUNDAI MOTOR AMERICA
    G15483235Courtesy of HYUNDAI MOTOR AMERICA
    White cable is visible through 5 O' Clock Neutral Check Window White cable is not visible through 5 O' Clock Neutral Check Window
  4. Clock spring manual neutral setting procedure.

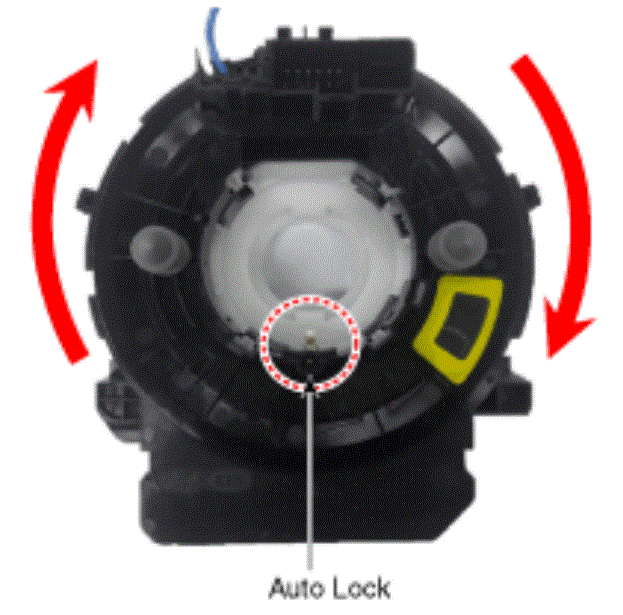

    1. Press the Auto Lock at 6 O' Clock and turn clockwise 3 rotations.
      G15483236Courtesy of HYUNDAI MOTOR AMERICA

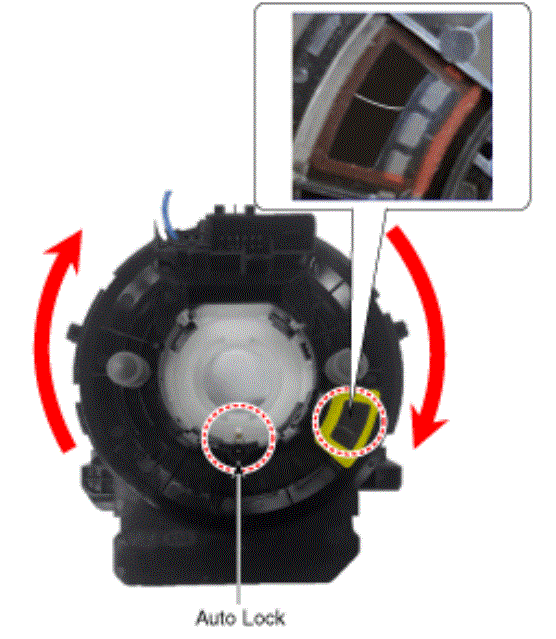

    2. Press the Auto Lock at 6 O' Clock and turn counter-clockwise 3 rotations.
    3. If white cable is visible through the 5 O' Clock Neutral Check Window, then the spring is set to neutral.
      G15483237Courtesy of HYUNDAI MOTOR AMERICA
  5. Connect the Driver Airbag (DAB) module connector and horn connector.
  6. Install the steering wheel column shroud and the steering wheel (Refer to Steering System - "STEERING COLUMN AND SHAFT ")
  7. Install the Driver Airbag (DAB) module on the steering wheel.
  8. Connect the battery negative cable.
  9. After installing the airbag, confirm proper system operation
    NOTE:
    • Turn the ignition switch ON; the SRS indicator light should be turned on for about six seconds and then go off.
