Repair Procedures: Removal
- Turn the steering wheel so that the front wheels can face straight ahead.
- Disconnect the battery negative cable and wait for at least three minutes before beginning work.

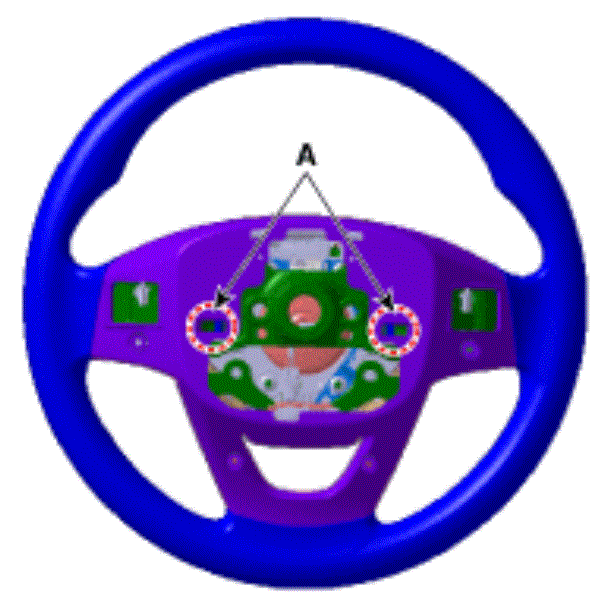

- Putting in a flat tool (Ø5 mm) into the guide hole (A) and then release the DAB fixing pin.NOTE:
- When put a tool into a hole, make sure not to damage an airbag cousin by a tool.

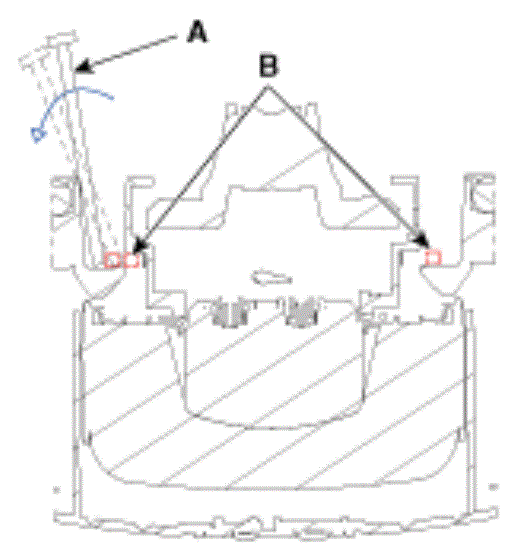

- After inserting the tool (A), press the DAB fixed pin (B) in the direction of the arrow as illustration below.

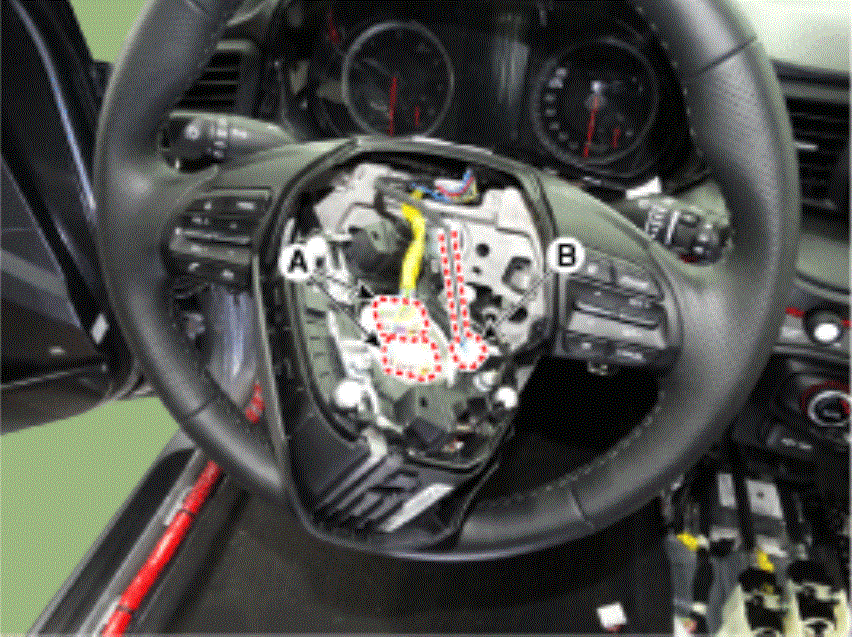

- Release the connector locking, then disconnect the driver airbag module connector (A) and horn connector (B).NOTE:
- The removed airbag module should be stored in a clean, dry place with the pad cover facing up.
- Remove the steering wheel and steering wheel column shroud (A). (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

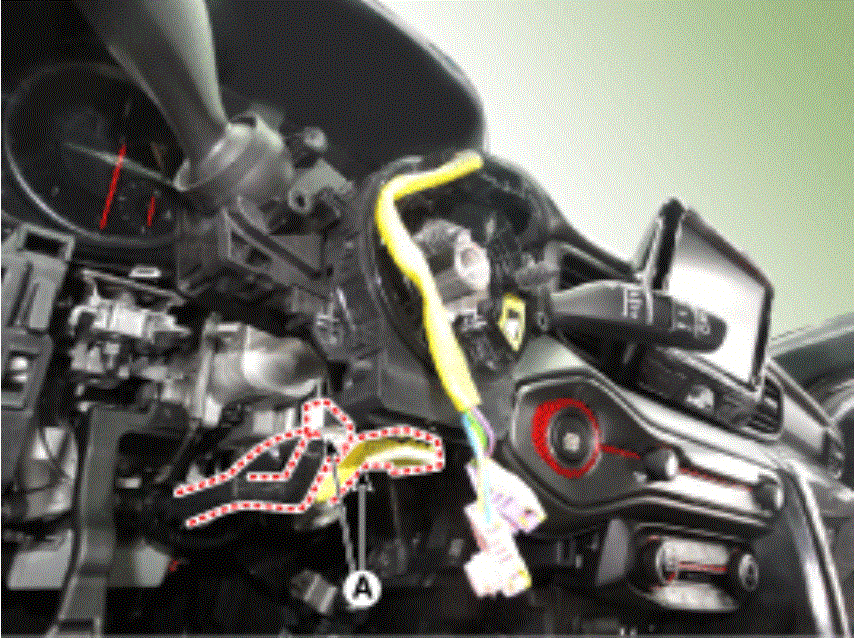

- Disconnect the clock spring and horn connector, then remove the clock spring (A).

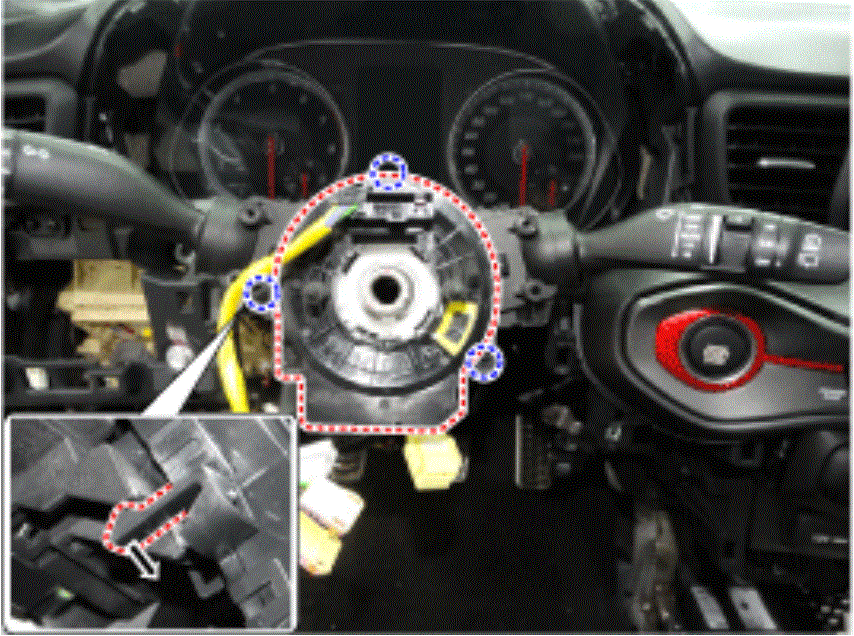

- Separate the fixed hooks (3 places) and remove the clock spring.
