Repair Procedures: Removal

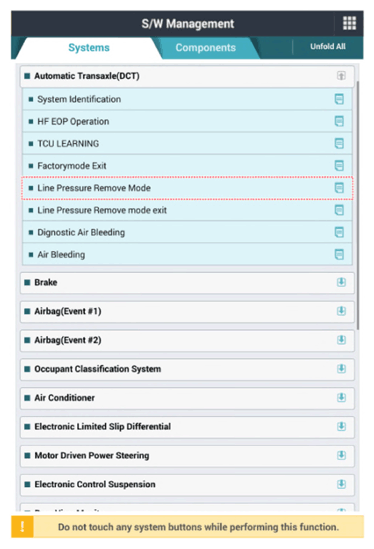

- Before removing the accumulator, eliminate the line pressure using the diagnostic tool.
- Remove the under cover. (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

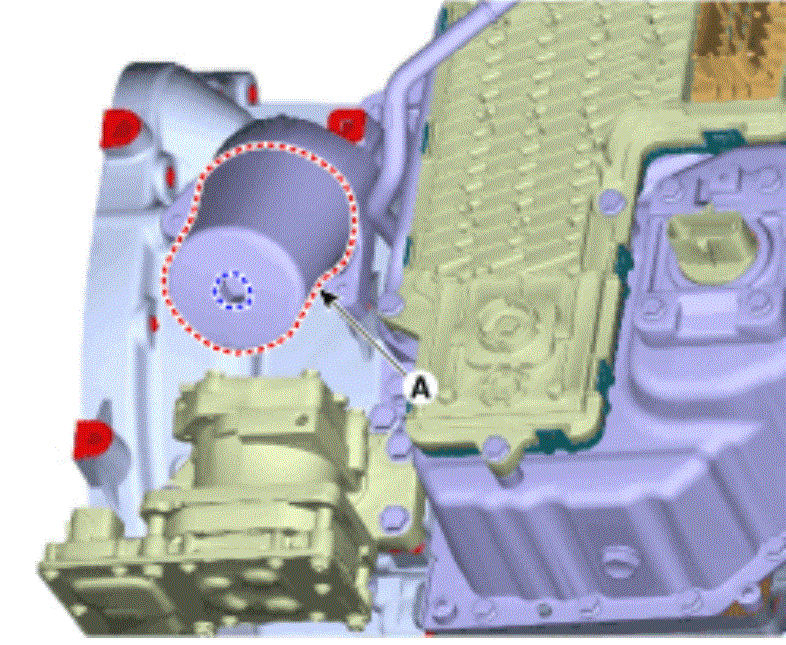

- Remove the accumulator (A).
Tightening torque:
132.3 - 161.8 N.m (13.5 - 16.5 kgf.m, 97.6 - 119.3 lb-ft)
