Repair Procedure: Installation
- Install is proceeds as follows.

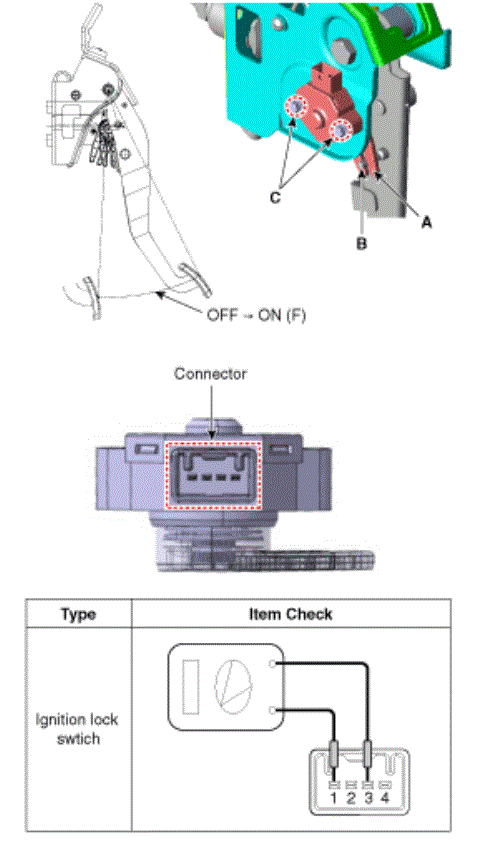

* How to install the ignition lock & clutch switch
- After inserting the switch lever (A) into the clutch pedal pin (B), pre-tighten the switch mounting bolt (C).
- Set the clutch switches so as to confirm that the electric current is applied to the pins (1) and (3).
- Fix the clutch pedal to the ignition lock switch OFF→ON strokes (F).
- With the pedal fixed, rotate the switch clockwise and counter-clockwise to set it to a position at the transition from OFF to ON. Then, tighten the mounting bolt (C) to the specified torque.
- Once completing the assembly, check again that the switch is correctly operating.
* OFF→ON stroke tolerance should be within ± 7.7 mm (0.3031 in.)
OFF → ON Position (F)
125.2 ± 7.7 mm (4.9291 ± 0.3031 in.)
Tightening torque:
(C) 2.9 - 5.9 N.m (0.3 - 0.6 kgf.m, 2.2 - 4.3 lb-ft)
