Repair Procedures: Installation

  1. To install, reverse the removal procedure.
    NOTE:
    • When installing, set control shaft lever to neutral position.

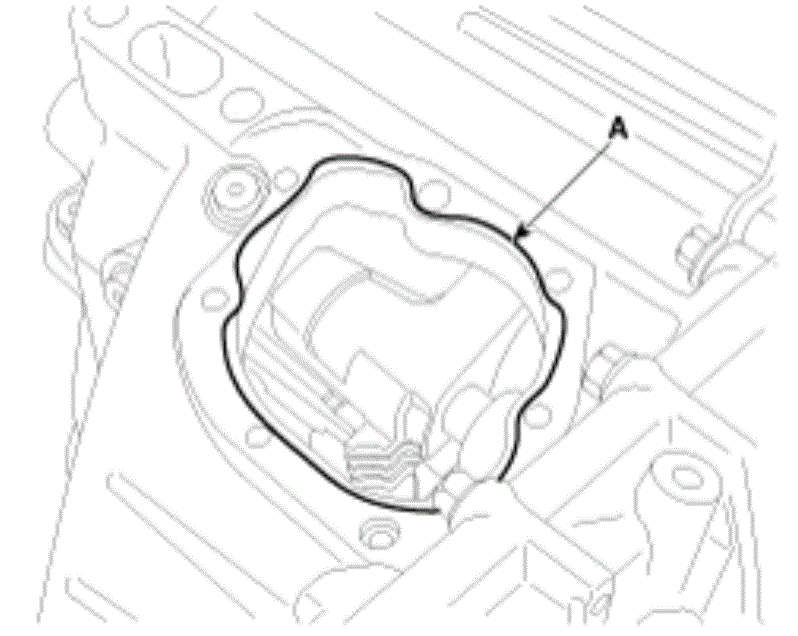

    • When installing, apply the sealant as shown in the illustration.

    Specified sealant:  LOCTITE 5060
    G15472398Courtesy of HYUNDAI MOTOR AMERICA
