Repair Procedures: Inspection

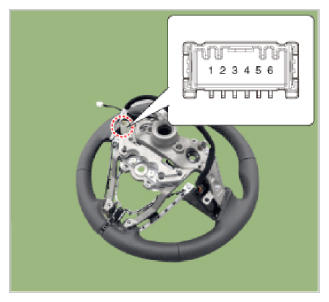

- Disconnect the cruise control switch connector from the control switch.
- Measure resistance between terminals on the control switch when each function switch is ON. (switch is depressed)
| Switch | Connector terminal | Resistance (± 5%) |
|---|---|---|
| CANCEL | 2-6 | 390Ω |
| SET - | 2-6 | 610Ω |
| RES + | 2-6 | 910Ω |
| CRUISE | 2-6 | 1.38 kΩ |
| SCC | 2-6 | 3.63 kΩ |
