Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

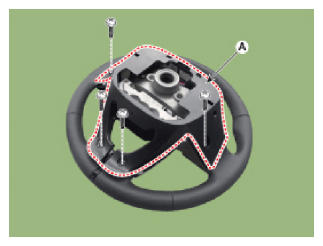

  3. Remove the screws from the steering back cover (A).
    G13052475Courtesy of HYUNDAI MOTOR AMERICA

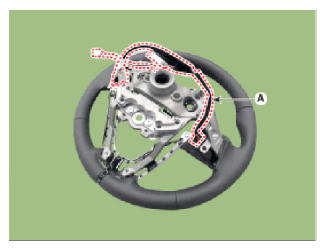

  4. Remove the steering remote control connector (A).
    G13052476Courtesy of HYUNDAI MOTOR AMERICA

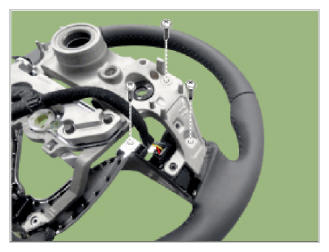

  5. Remove the steering remote control (A) after loosening the screws.
    G13052477Courtesy of HYUNDAI MOTOR AMERICA

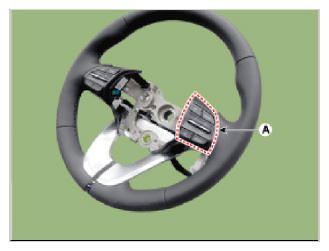

G13052478Courtesy of HYUNDAI MOTOR AMERICA
