Repair Procedures: Replacement

Open the cover and loosen the front seat mounting bolts.

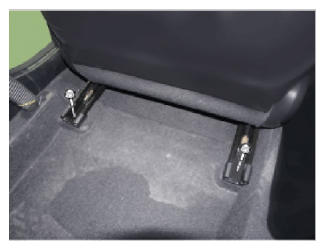

Front

Tightening torque:

44.1 - 58.8 N.m (4.5 - 6.0 kgf.m, 32.5 - 43.4 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

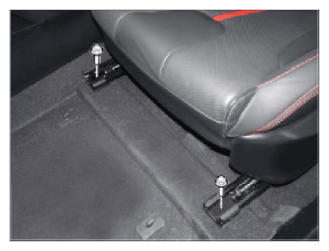

Rear

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the main connector (A), side airbag connector (B), front seat belt buckle connector (C), OCS connector (D).

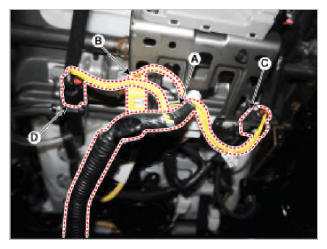

Driver's

Courtesy of HYUNDAI MOTOR AMERICA

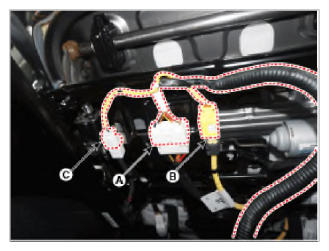

Passenger's

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
Information

The installation procedures of seat mounting bolts
- Push the seat to the rear end of slides and initially tighten the front mounting bolts.
- Push the seat to the front end of slides and completely tighten the rear mounting bolts.
- Send the seat to the rear end again to completely tighten the front mounting bolts.
- Check the seat for smooth movement.
- For the non-automatic slide seats, check the seats are fixed at each designated fixing position.
