Components And Components Location: Components

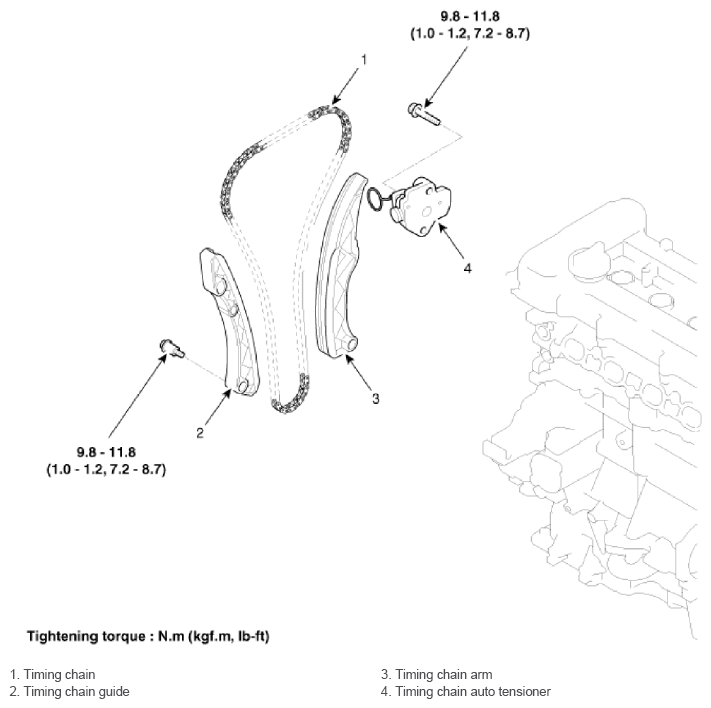

Fig 1: Timing Chain Components With Torque Specification
G13051971Courtesy of HYUNDAI MOTOR AMERICA
