Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) cable.
- Remove the under cover front panel.
(Refer to Engine Mechanical System - "ENGINE AND TRANSAXLE ASSEMBLY ")

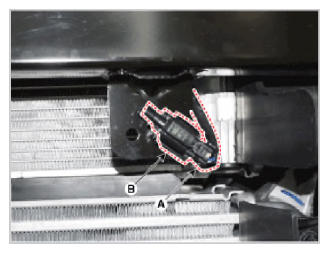

- Disconnect the connector (A), an then remove the ambient temperature sensor (B).
