Home › Hyundai › 2021 › Veloster Turbo › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Camshaft Position Sensor (CMPS) › Repair Procedures › Removal › Bank 1/Intake

Bank 1/Intake

  1. Turn the ignition switch OFF and disconnect the battery negative (-) terminal.

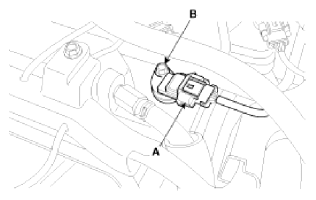

  2. Disconnect the camshaft position sensor connector (A).
  3. Remove the installation bolt (B), and then remove the sensor.
    G13052578Courtesy of HYUNDAI MOTOR AMERICA
