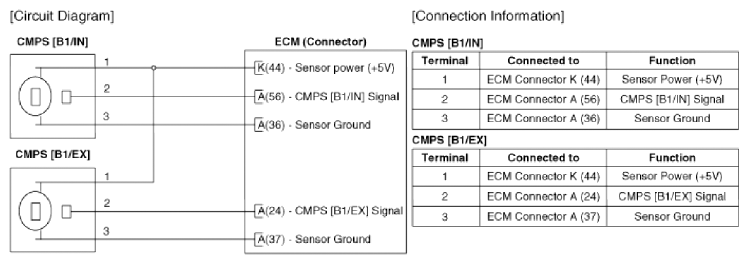

Home › Hyundai › 2021 › Veloster Turbo › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Camshaft Position Sensor (CMPS) › Schematic Diagrams › Circuit Diagram › Notes
