Home › Hyundai › 2021 › Veloster Turbo › Repair and Diagnosis › Engine Performance › Engine Control Systems › Engine Control System - 1.6L › Camshaft Position Sensor (CMPS) › Troubleshooting › Waveform

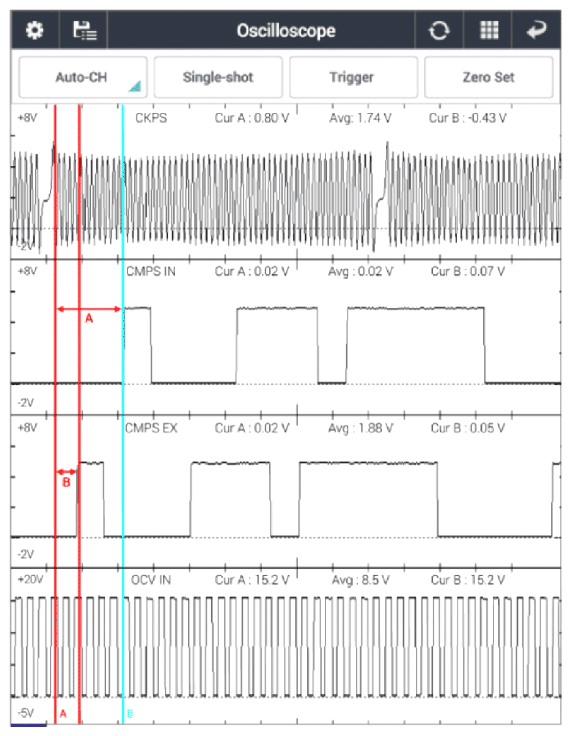

Camshaft Position Sensor (CMPS): Troubleshooting: Waveform

G13052575Courtesy of HYUNDAI MOTOR AMERICA
