Bank 1/Sensor 1

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.
  2. Disconnect the connector (A), and then remove the sensor (B).
    NOTE:
    • Note that the SST (Part No.: 09392-1Y100) is useful when removing the heated oxygen sensor.
    G13052588Courtesy of HYUNDAI MOTOR AMERICA

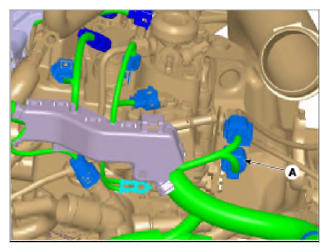

    G13052589Courtesy of HYUNDAI MOTOR AMERICA

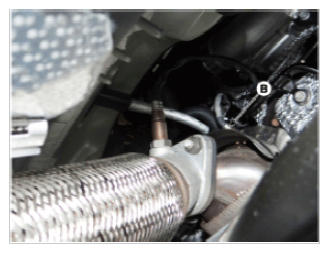

    G13052590Courtesy of HYUNDAI MOTOR AMERICA
