Component Location: Bps

Boost Pressure Sensor (BPS)

Courtesy of KIA MOTORS AMERICA, INC.

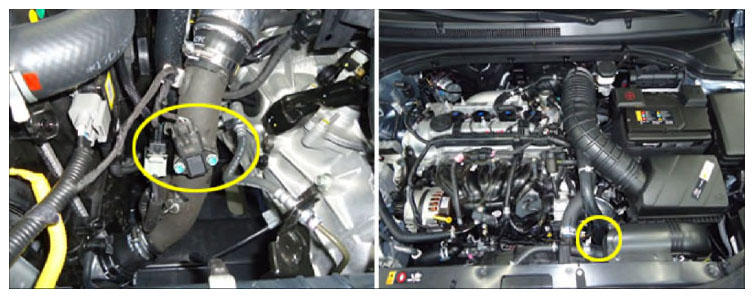

Boost Pressure Sensor (BPS) is mounted between turbo charger and intake manifold, and it senses inner pressure supercharged by turbo charger. ECM determines suitable fuel ratio with the pressure of intake manifold and intake air amount measured by MAP sensor.
