Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

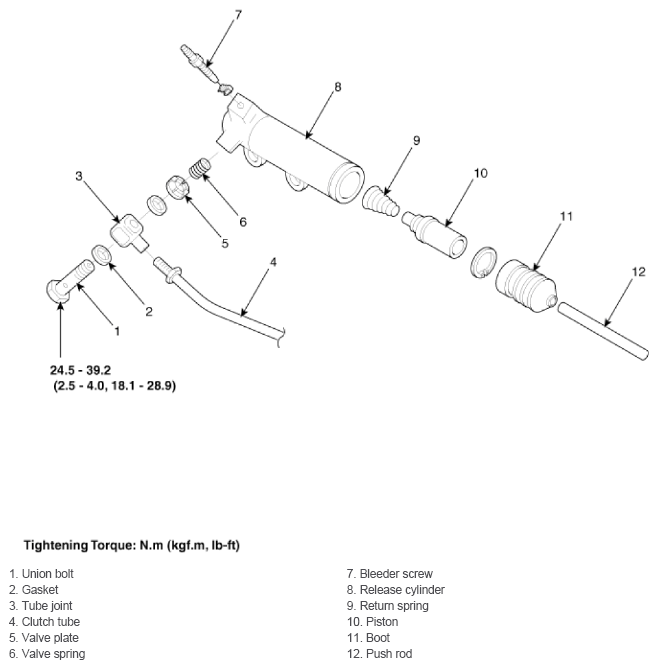

Fig 1: Clutch Release Cylinder Components Location With Torque Specification

Courtesy of HYUNDAI MOTOR AMERICA
