Tire Wear: Notes

Measure the tread depth of the tires.
Tread depth [limit] : 1.6 mm (0.063 in)

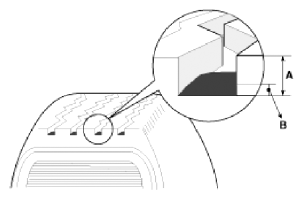

If the remaining tread depth (A) is less than the limit, replace the tire.
NOTE:
- When the tread depth of the tires is less than 1.6 mm (0.063 in), the wear indicators (B) will appear.
