Home › Hyundai › 2021 › Veloster Turbo › Repair and Diagnosis › Transmission › Transmission Control Systems › Dual Clutch Transmission Control System - 1.6L › Clutch Actuator Assembly › Components And Components Location › Components

Components And Components Location: Components

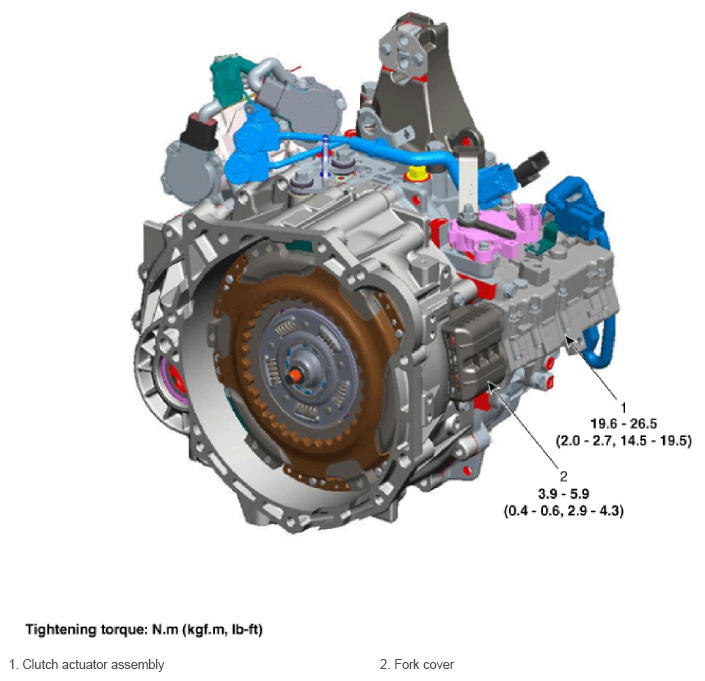

Fig 1: Clutch Actuator Assembly Components Location With Torque Specification
G13052821Courtesy of HYUNDAI MOTOR AMERICA
