Components And Components Location: Components

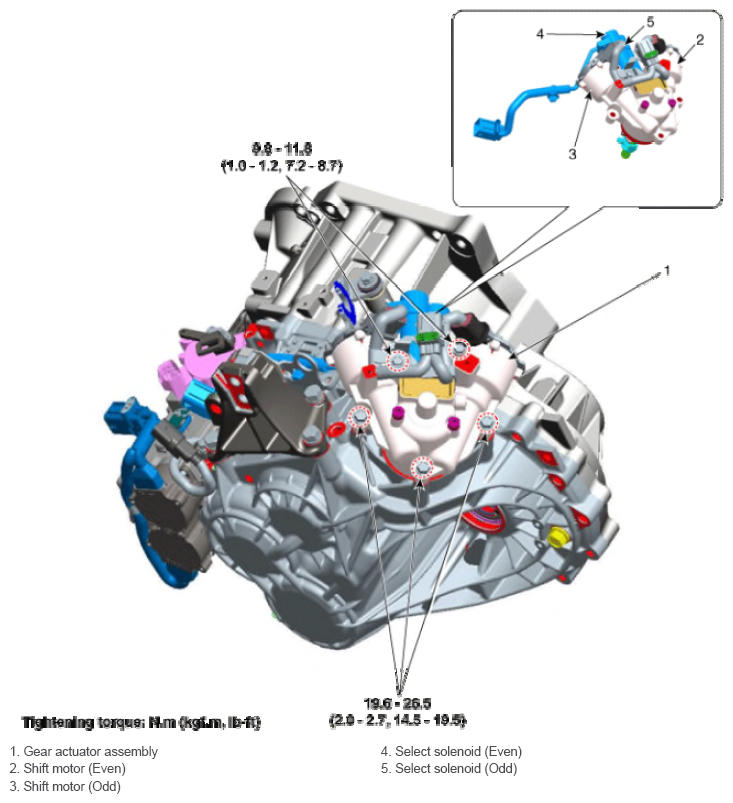

Fig 1: Gear Actuator Assembly Components Location With Torque Specification
G13052834Courtesy of HYUNDAI MOTOR AMERICA
