Repair Procedures: Removal
- Remove the air cleaner assembly and air duct.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the battery and tray.
(Refer to Engine Electrical System - "BATTERY ")
- Remove the clutch actuator assembly.
(Refer to Dual Clutch Transmission Control System - "CLUTCH ACTUATOR ASSEMBLY ")

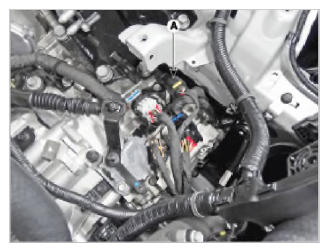

- Disconnect the input shaft speed sensor (A).

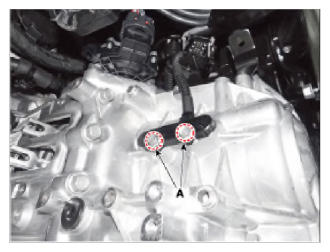

- Remove the input shaft speed sensor after removing the bolt (A-2 ea).
