Repair Procedures: Inspection

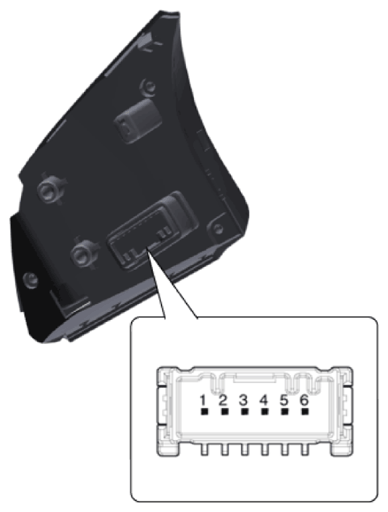

Loosen the cruise control switch connector.

Courtesy of HYUNDAI MOTOR AMERICA

Check for resistance between terminals in each switch position.

Switch	Connector terminal	Resistance (± 5%)
Cancel	2 - 6	330Ω
SET -		610Ω
RES +		910Ω
Cruise ON/OFF		1.38 KΩ
Cruise Mode		2.13 KΩ
