Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly. (Refer to Steering System - "STEERING WHEEL ")

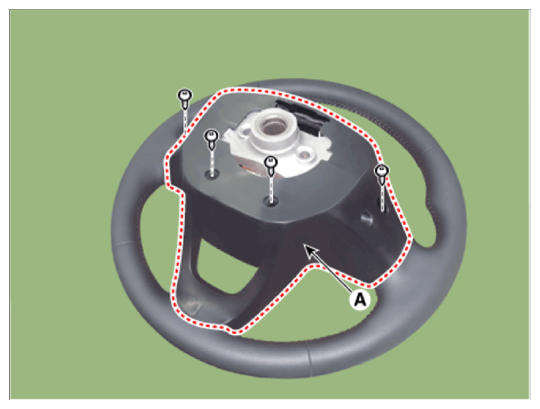

  3. Remove the steering lower cover (A).
    G14702735Courtesy of HYUNDAI MOTOR AMERICA

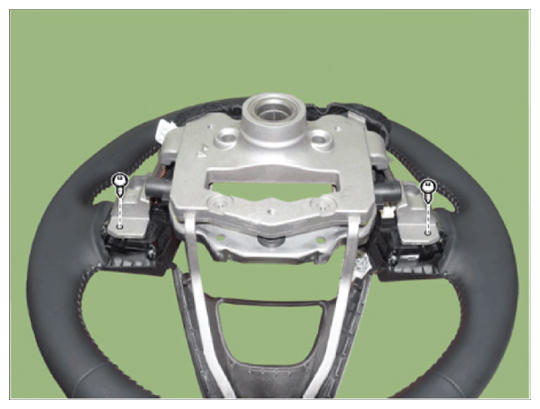

  4. Loosen the steering remote control switch mounting screw.
    G14702736Courtesy of HYUNDAI MOTOR AMERICA

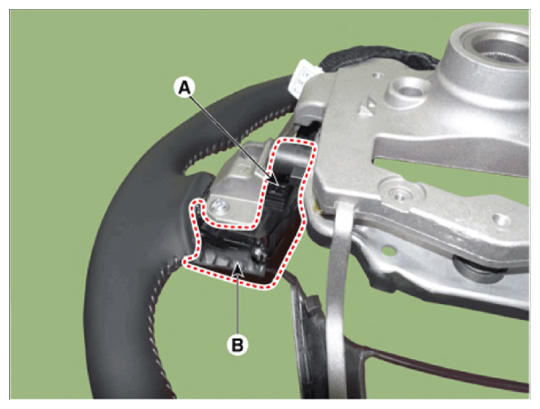

  5. Disconnect the connector (A) and then remove the steering wheel remote control switch (B).

    [RH]

    G14702737Courtesy of HYUNDAI MOTOR AMERICA

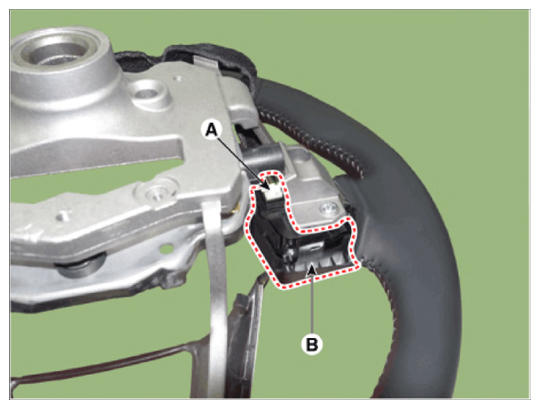

    [LH]

    G14702738Courtesy of HYUNDAI MOTOR AMERICA
