Repair Procedures: Replacement

Remove the steering wheel. (Refer to Steering System - "STEERING WHEEL ")

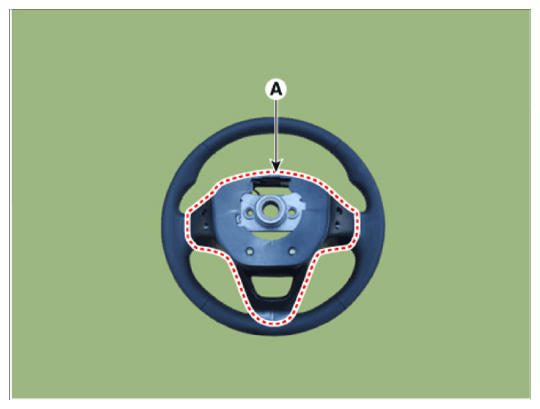

Loosen the screw and then remove the lower cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

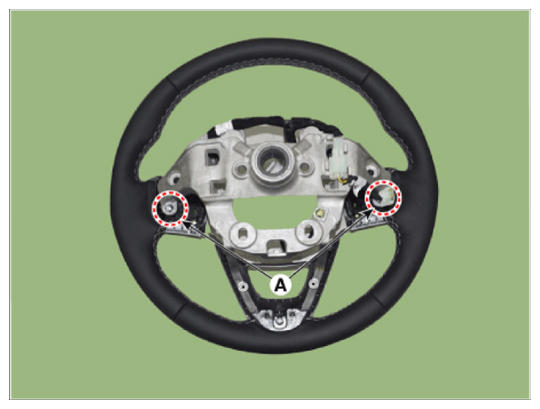

Loosen the remote control switch mounting screws (A).

Courtesy of HYUNDAI MOTOR AMERICA

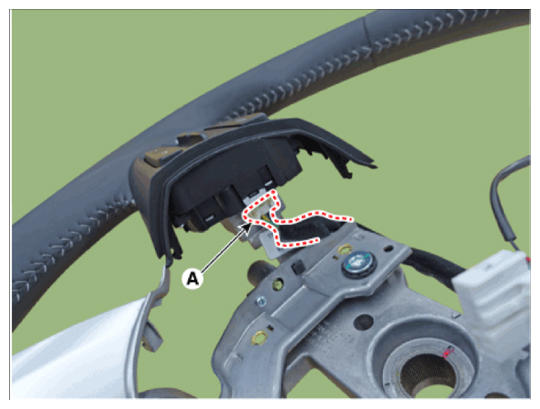

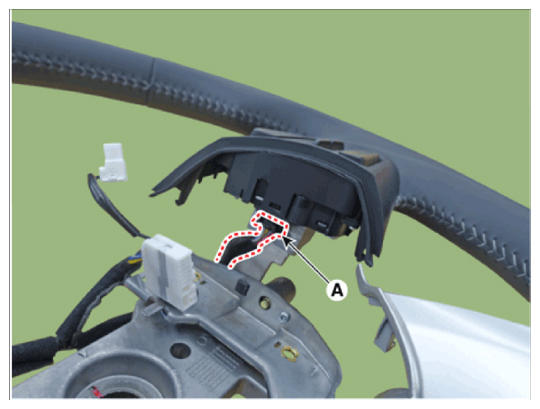

Disconnect the remote control switch connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA

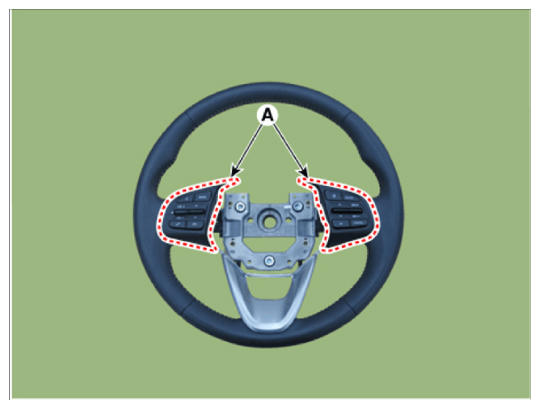

Loosen the screw and then remove the remote control switch (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse removal procedure.
