Diagnosis with GDS
- In the body electrical system, failure can be quickly diagnosed by using the vehicle diagnostic system (GDS).

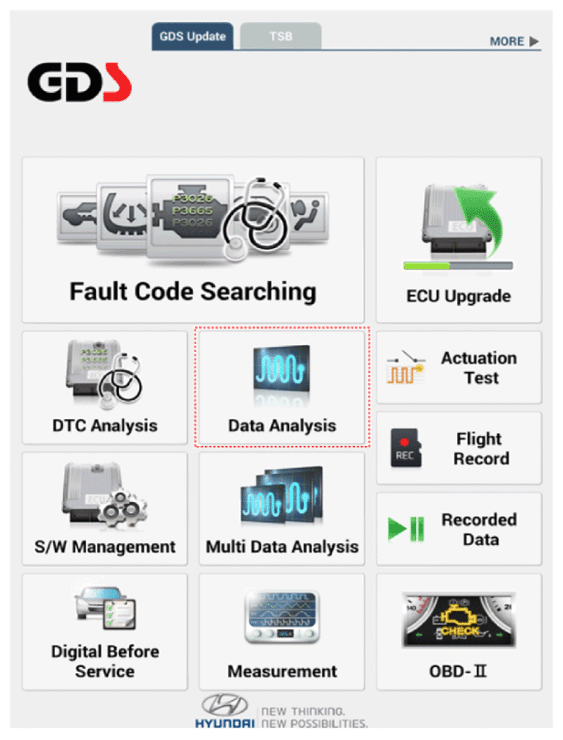

The diagnostic system (GDS) provides the following information.
- Fault Code Searching: Checking failure and code number (DTC)
- Data Analysis: Checking the system input/output data state
- Actuation test: Checking the system operation condition
- S/W Management: Controlling other features including system option setting and zero point adjustment
- If diagnose the vehicle by GDS, select "DTC Analysis" and "Vehicle".

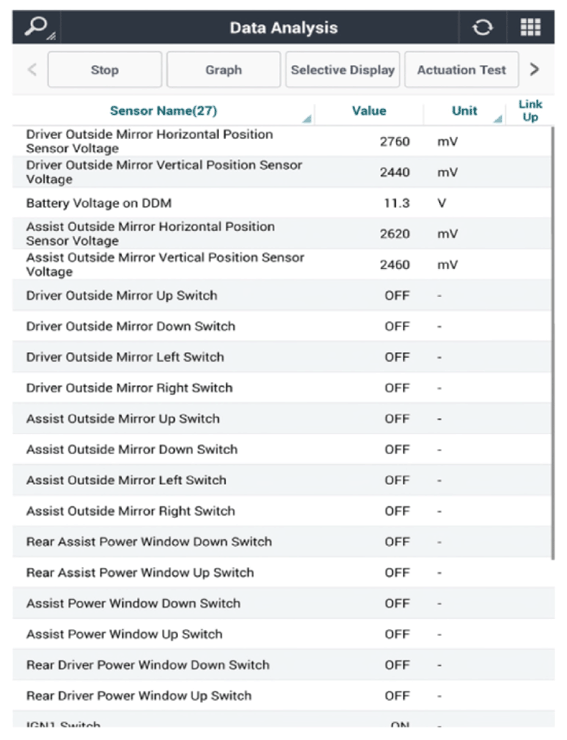

- Select the 'Data Analysis' and 'Car model'.

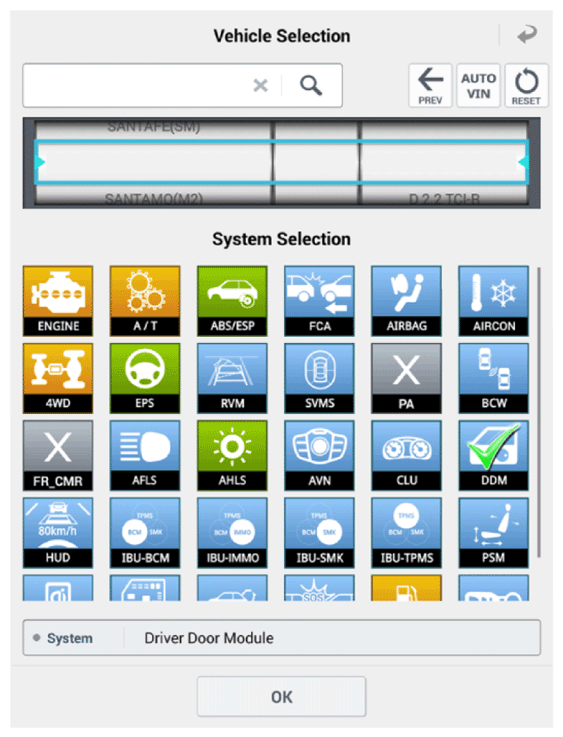

- Select the 'DDM' to search the current state of the input/output data.

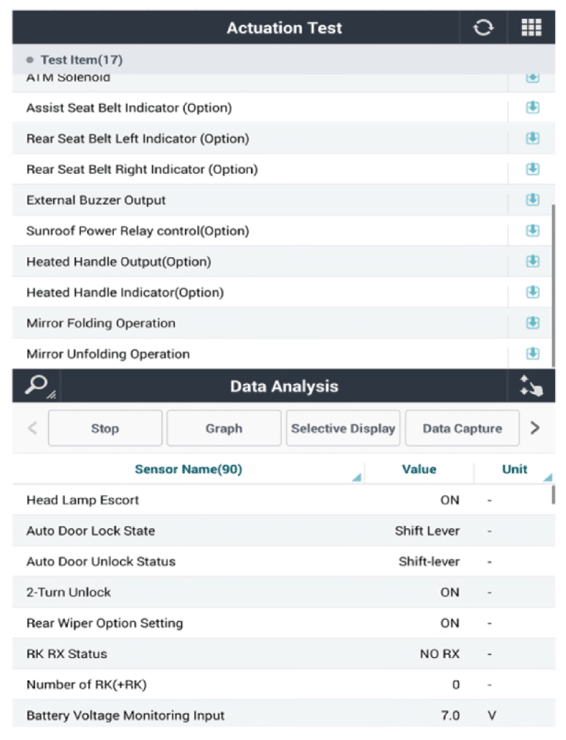

- To forcibly actuate the input value of the module to be checked, select option 'Actuation Test'.
