Battery Tray
- Remove the battery.
(Refer to "REMOVAL ")
- Remove the air cleaner assembly.
(Refer to Engine Mechanical System - "AIR CLEANER ")
- Remove the ECM.
(Refer to Engine Control System - "ECM ")
- Remove the installation bolt (A) and then remove the battery (+) terminal bracket.
Battery (+) terminal bracket installation bolt:
8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb - ft)

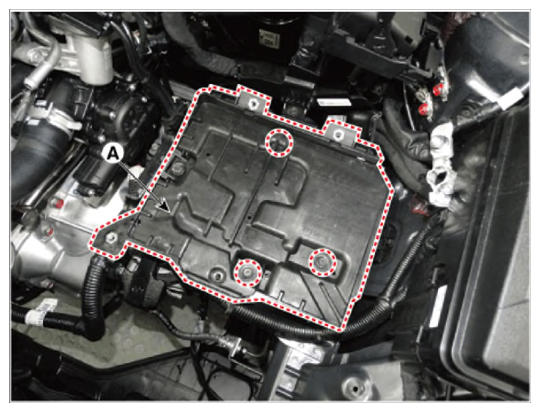

- Remove the battery tray after loosening the bolts (A).
Battery tray installation bolts:
8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)
