Components & Components Location: Components

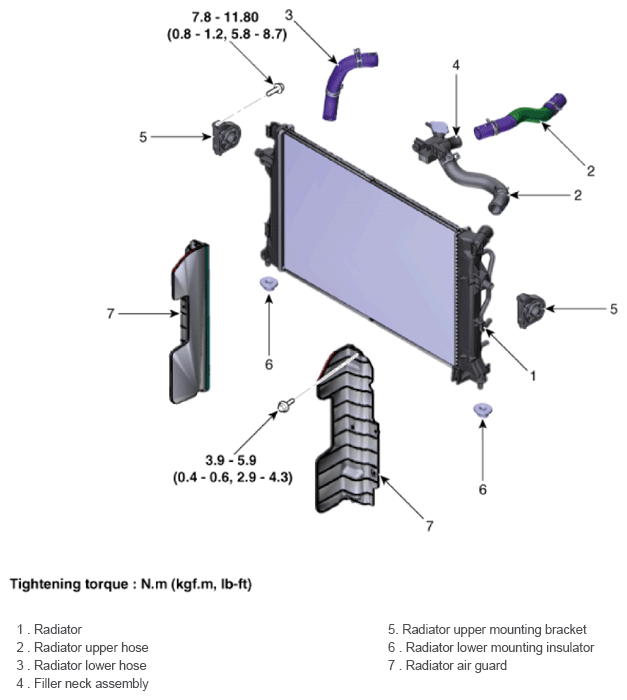

Fig 1: Radiator Components Location With Torque Specification
G14694067Courtesy of HYUNDAI MOTOR AMERICA
