Home › Hyundai › 2021 › Venue Denim › Repair and Diagnosis › Engine Mechanical › Cooling Fan › Engine Cooling System › Water Pump › Components & Components Location › Components

Components & Components Location: Components

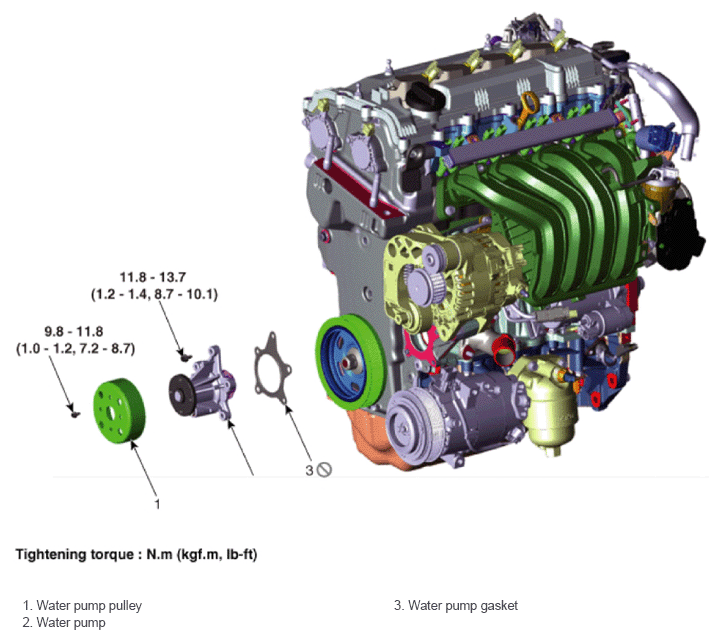

Fig 1: Water Pump Components Location With Torque Specification
G14694097Courtesy of HYUNDAI MOTOR AMERICA
