Engine Control System Diagnosis (1 Of 6)
›
DTC P0077-00: Intake Valve Control Solenoid Circuit High
›
Troubleshooting
›

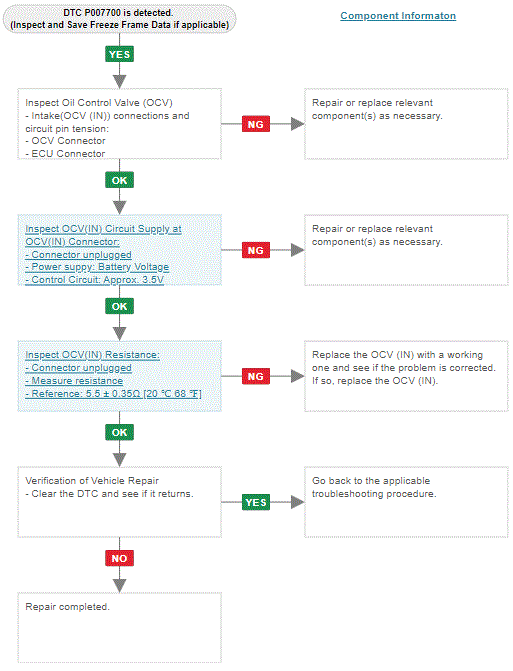

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
