Engine Control System Diagnosis (6 Of 6)
›
DTC P2B59-00: Engine Coolant Flow Control Valve Control Circuit/Open
›
Troubleshooting
›

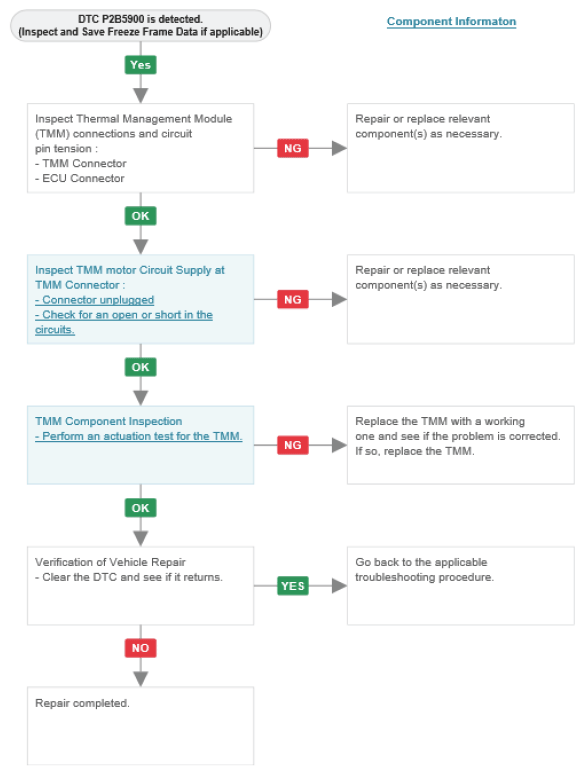

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
