Heated Control Unit (Integrated Body Control Unit (IBU)
- Disconnect the negative (-) battery terminal.
- Remove the glove box.
(Refer to Body - "GLOVE BOX HOUSING ")
- Disconnect the IBU connectors.

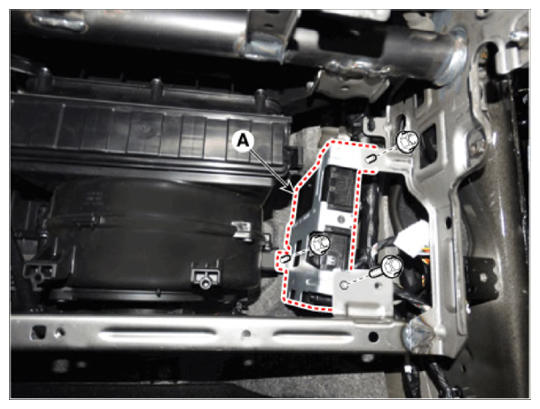

- Remove the integrated body control unit (A) after loosening the nuts.

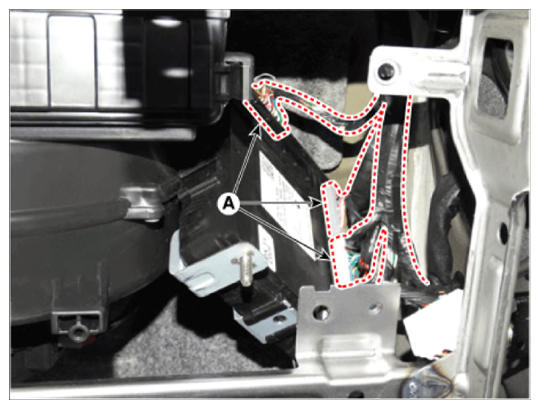

- Remove the integrated body control unit the connectors (A).
