Repair Procedures: Removal
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

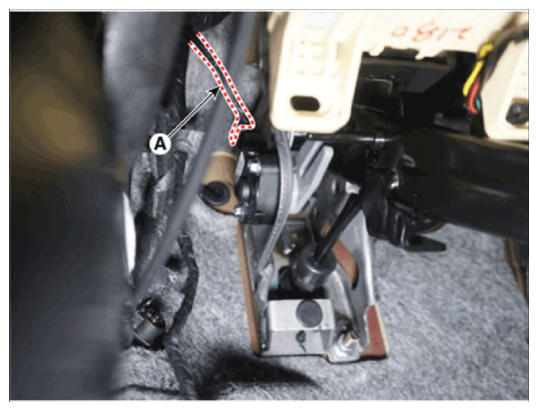

- Disconnect the ignition lock & clutch switch connector (A).

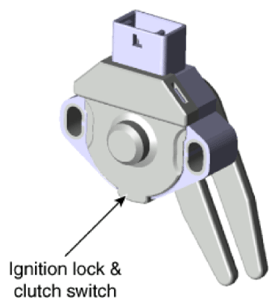

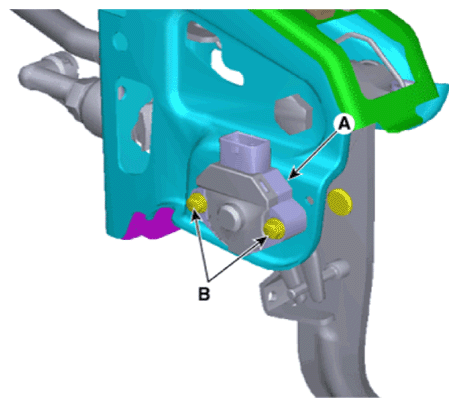

- Remove the ignition lock & clutch switch (A) after loosening the bolts (B).
