Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

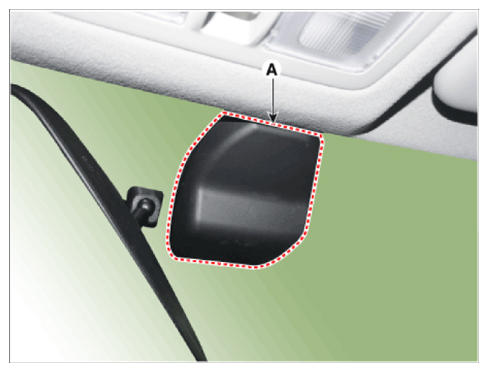

  2. Remove the front view camera cover (A).
    G14702666Courtesy of HYUNDAI MOTOR AMERICA

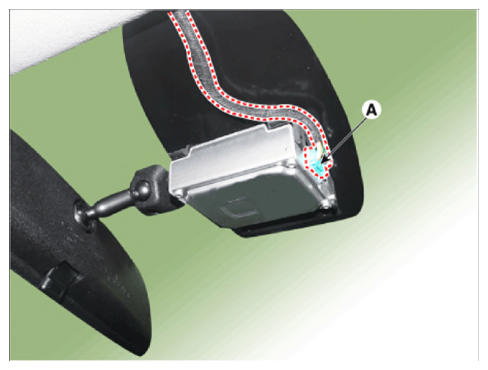

  3. Separate the front view camera connector (A).
    G14702667Courtesy of HYUNDAI MOTOR AMERICA

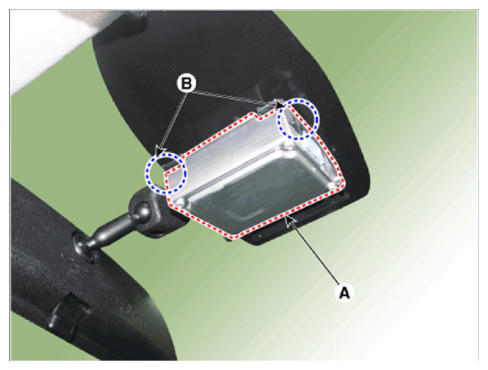

  4. After passing the fixing point (B) of the coupler, remove the front view camera (A).
    G14702668Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to break any of the anchor points (B).
