FOB Status Check

  1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel.

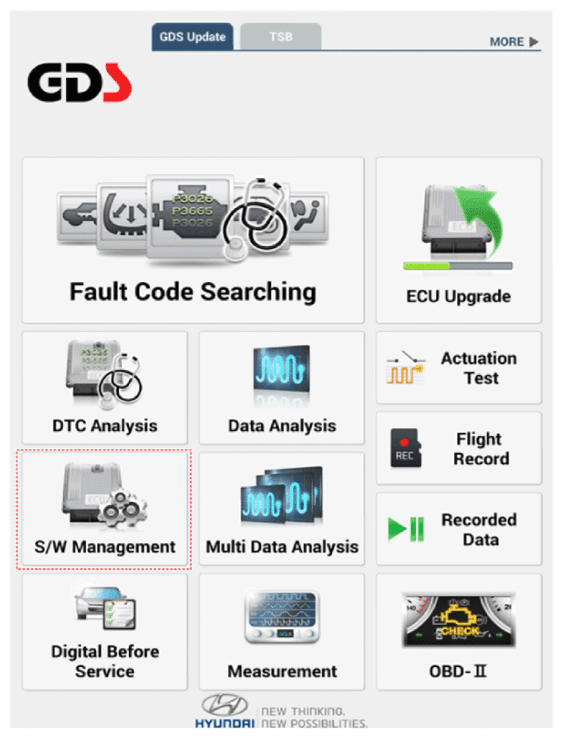

  2. Select the 'S/W Management' and 'Car model'.
    G14696051Courtesy of HYUNDAI MOTOR AMERICA

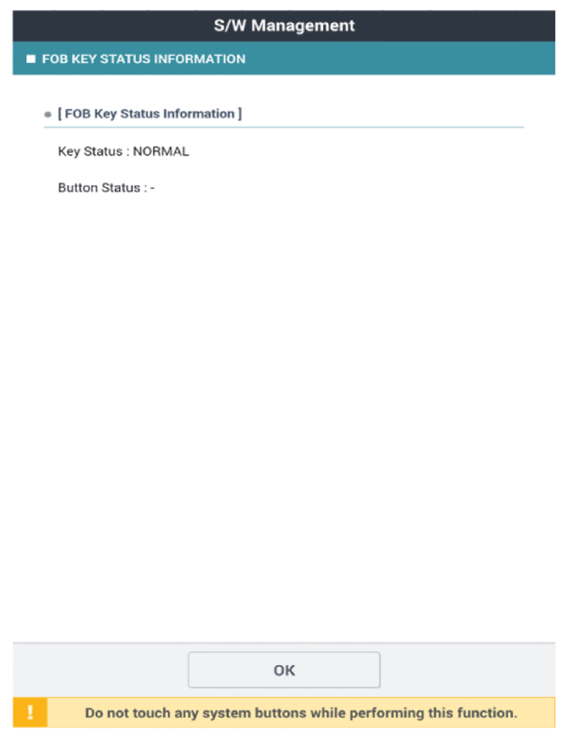

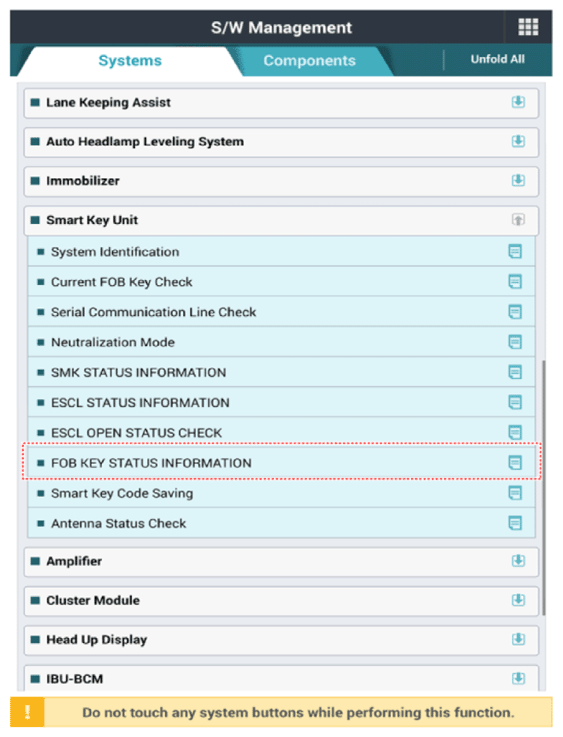

  3. Select the 'Smart Key Unit' and 'FOB KEY STATUS IMFORMATION'.
G14696052Courtesy of HYUNDAI MOTOR AMERICA
G14696053Courtesy of HYUNDAI MOTOR AMERICA
