Interior 2 Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly.

    (Refer to Bocy - "FLOOR CONSOLE ASSEMBLY ")

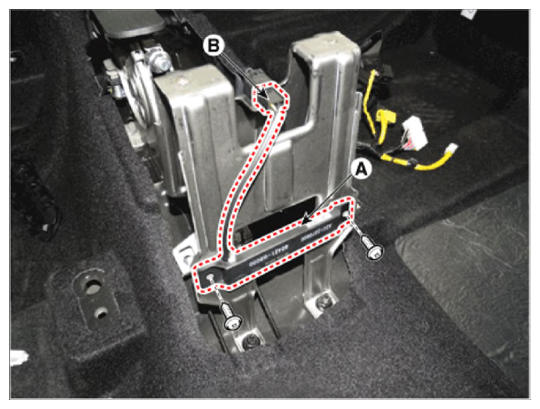

  3. Remove the interior 2 antenna (A) after loosening the mounting screws and disconnecting the connector (B).
G14696038Courtesy of HYUNDAI MOTOR AMERICA
