Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
  1. Remove the front seat back cover.

    (Refer to Front Seat - "FRONT SEAT BACK COVER ")

  2. Remove the front seat cushion cover.

    (Refer to Front Seat - "FRONT SEAT CUSHION COVER ")

  3. Remove the SAB module.

    (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")

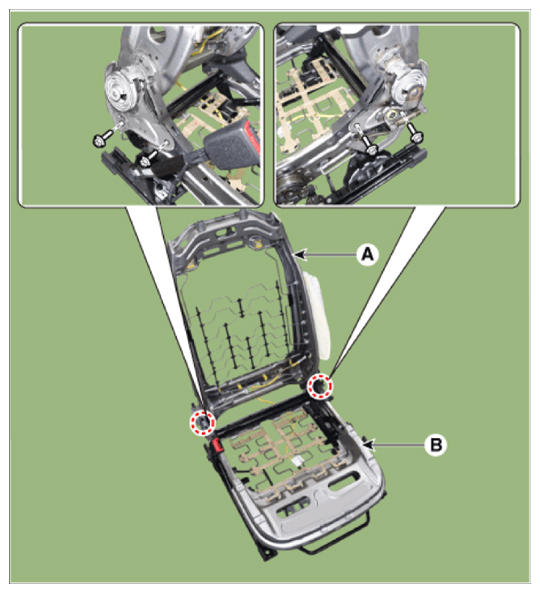

  4. Loosen the mounting bolts and detach the front seat back frame assembly (A) from the front seat cushion frame assembly (B).

    Tightening torque:

    44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)

    G14695882Courtesy of HYUNDAI MOTOR AMERICA
  5. To install, reverse removal procedure.

    Information

    • For the seat equipped with side airbag, remove the side airbag from the seat frame assembly.

      (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")

    • Before service, be fully aware of precautions and service procedure relevant to air bag.

      (Refer to Restraint - "SIDE AIRBAG (SAB) MODULE ")
