Components & Components Location: Components

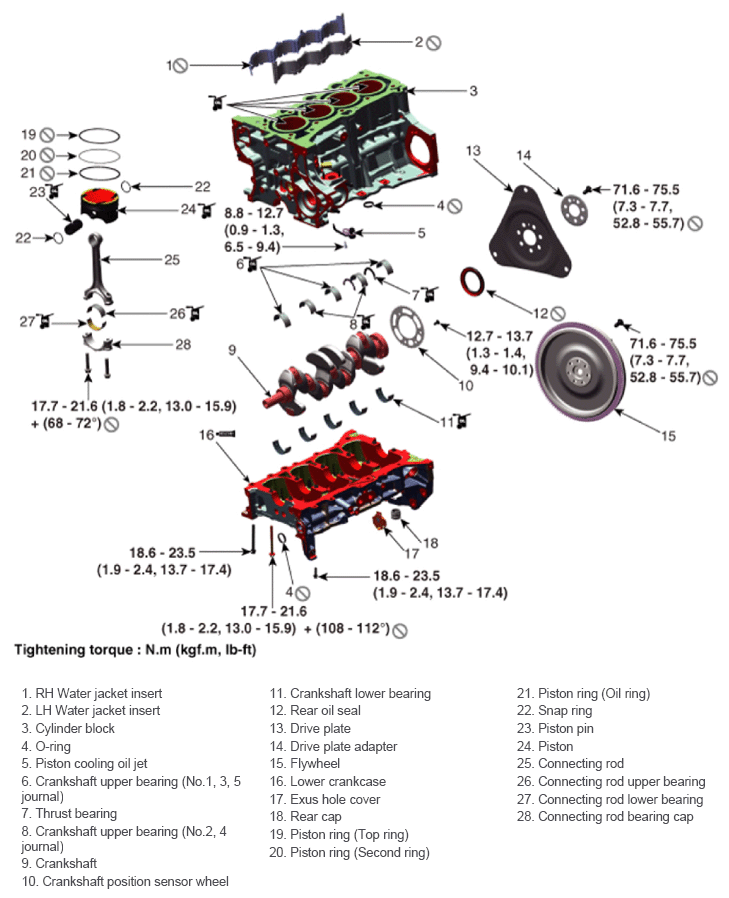

Fig 1: Cylinder Block Components Location With Torque Specification
G14693965Courtesy of HYUNDAI MOTOR AMERICA
