Repair Procedures: Removal
- Turn the ignition switch OFF and disconnect the battery negative (-) terminal.
- Remove the battery tray.
(Refer to Engine Electrical System - "BATTERY ")

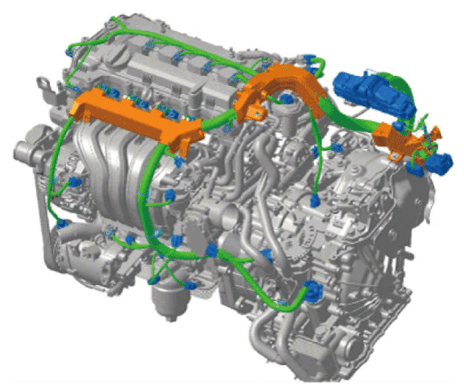

- Disconnect the harness wiring & injector connector.

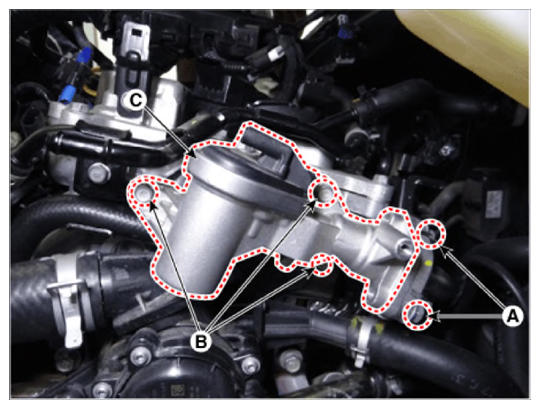

- Remove the EEGR cooler pipe (A).
- Remove the EEGR control valve (C) after removing the mounting bolts (B).
Electric EGR cooler pipe installation bolt:
18.6 - 23.5 N.m (1.9 - 2.4 kgf.m, 13.7 - 17.4 lb-ft)
Electric EGR control valve installation bolt:
12.7 - 14.7 N.m (1.3 - 1.5 kgf.m, 9.4 - 10.8 lb-ft)
