Engine Control System
›
Thermal Management Module (TMM) Motor
›
Components & Components Location
›
Components
Components & Components Location: Components

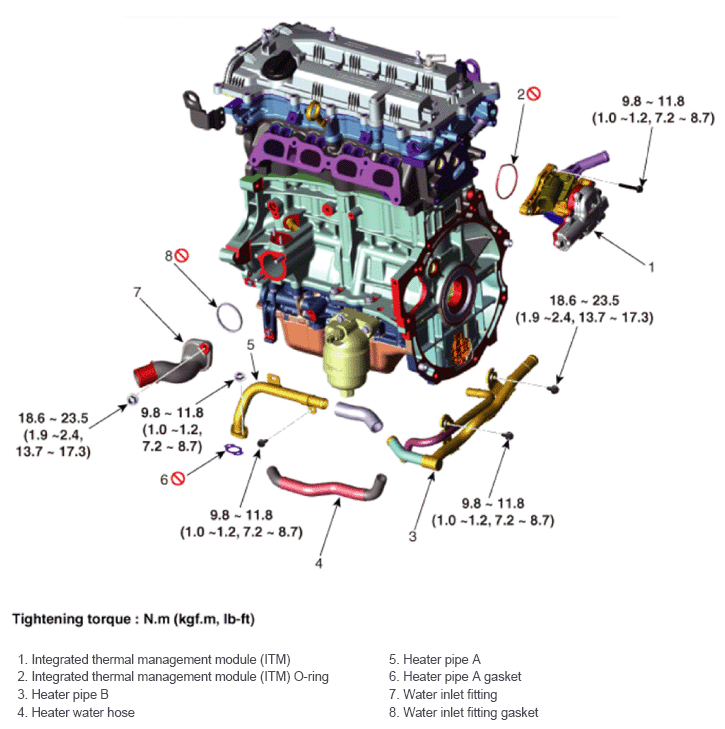

Fig 1: Thermal Management Module Motor Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
