Repair Procedures: Removal

  1. Release the residual pressure in fuel line.

    (Refer to Fuel Delivery System - "RELEASE RESIDUAL PRESSURE IN FUEL LINE ")

  2. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  3. Remove the rear seat.

    (Refer to Body - "REAR SEAT ASSEMBLY ")

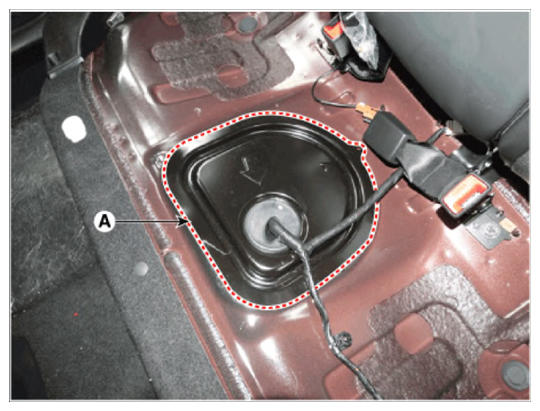

  4. Remove the fuel pump service cover (A).
    G14694539Courtesy of HYUNDAI MOTOR AMERICA

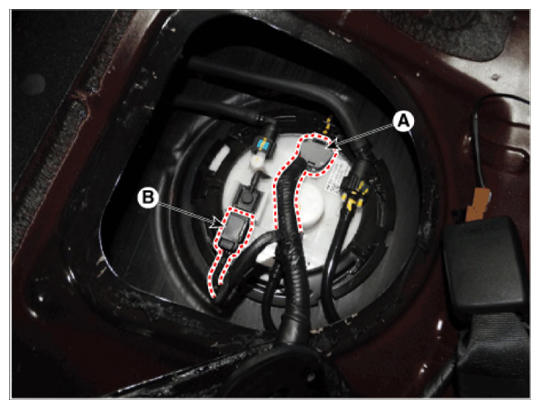

  5. Disconnect the fuel pump connector (A).
  6. Disconnect the fuel tank pressure sensor connector (B).
    G14694540Courtesy of HYUNDAI MOTOR AMERICA

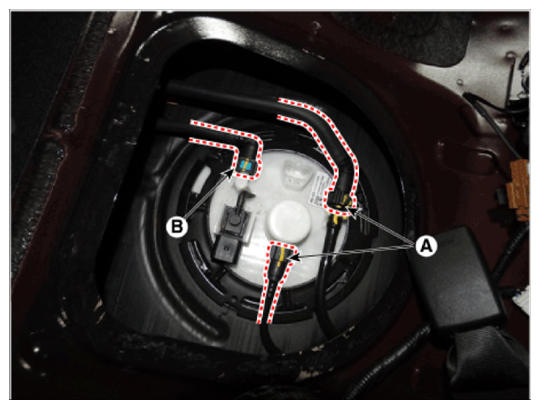

  7. Disconnect the vapor tube quick connector (A).
  8. Disconnect the fuel feed tube quick connector (B).
    G14694541Courtesy of HYUNDAI MOTOR AMERICA
  9. Lift the vehicle.

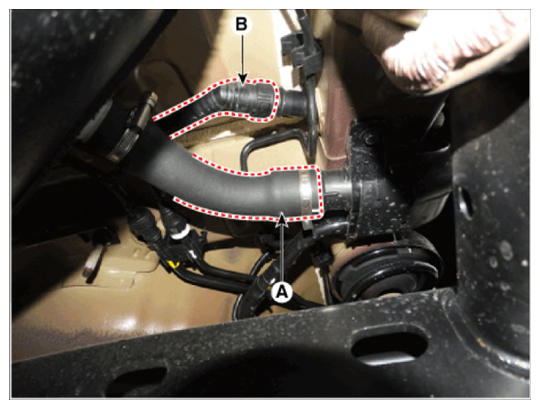

  10. Disconnect the fuel filler hose (A).
  11. Disconnect the Leveling hose quick-connector (B).
    G14694542Courtesy of HYUNDAI MOTOR AMERICA

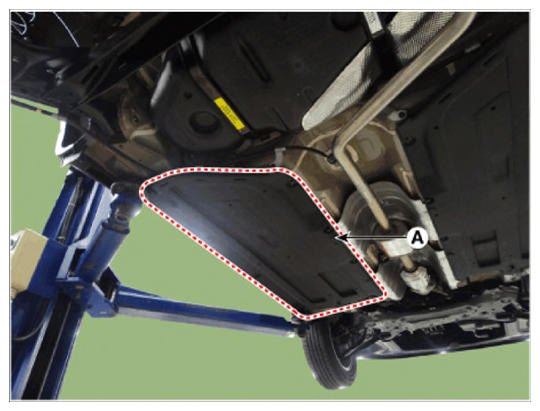

  12. Remove the side under cover (A).
    G14694543Courtesy of HYUNDAI MOTOR AMERICA

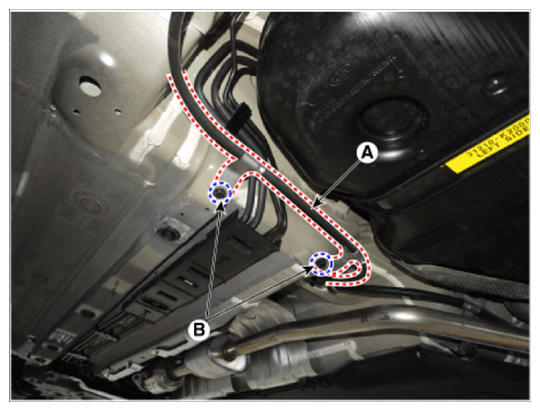

  13. Remove the brake line (A) bracket mounting bolts (B).
    G14694544Courtesy of HYUNDAI MOTOR AMERICA

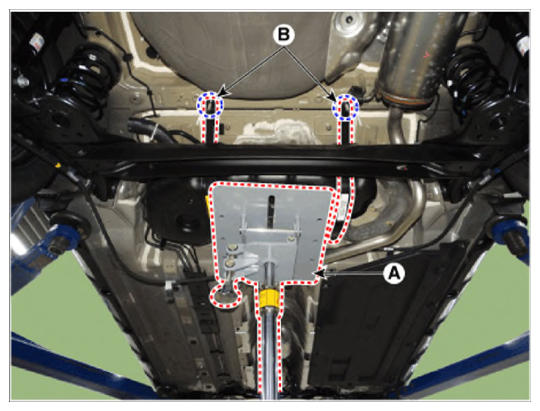

  14. Support the fuel tank with jack (A).
  15. Remove the fuel tank installation nut (B) and then loosen the fuel tank.

    Fuel tank band installation nut:

    39.2 - 54.0 N.m (4.0 - 5.5 kgf.m, 28.9 - 39.8 lb-ft)
