Components & Components Location: Components

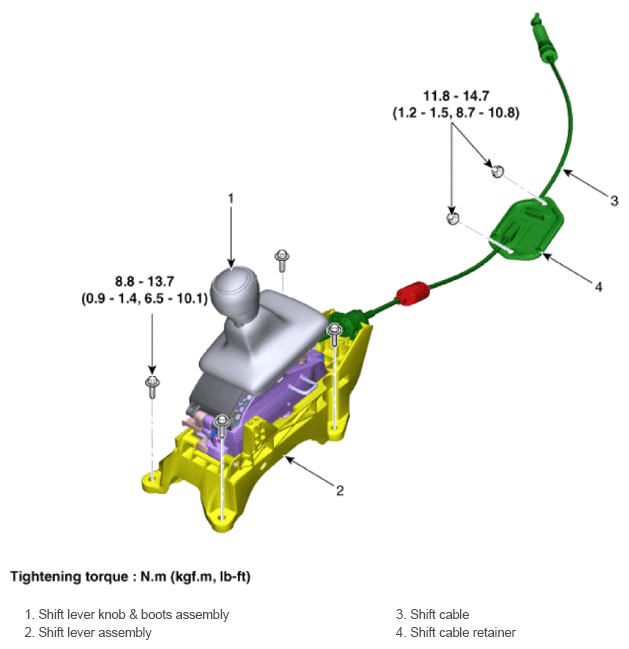

Fig 1: Shift Cable Components Location With Torque Specification
G14694859Courtesy of HYUNDAI MOTOR AMERICA
