Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

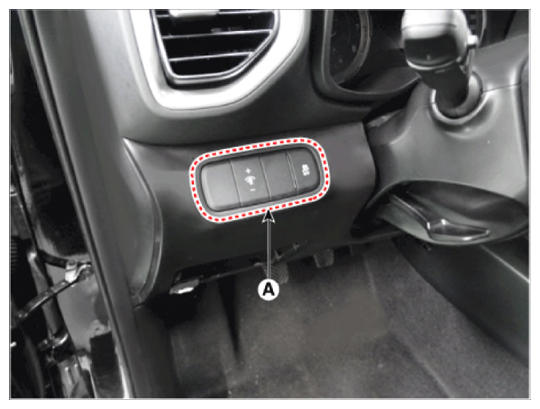

  3. Remove the ESP OFF switch (A).
    G14695570Courtesy of HYUNDAI MOTOR AMERICA

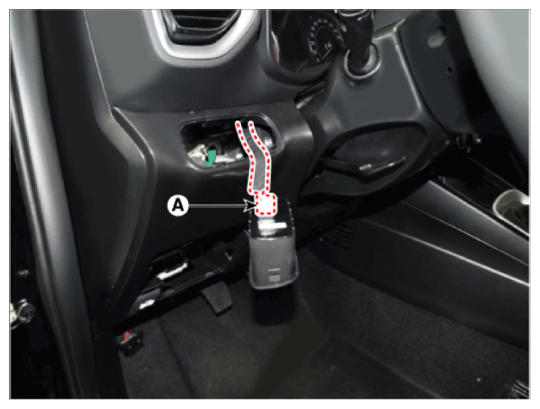

  4. Disconnect the ESP OFF switch connector (A).
G14695571Courtesy of HYUNDAI MOTOR AMERICA
