Components & Components Location: Components

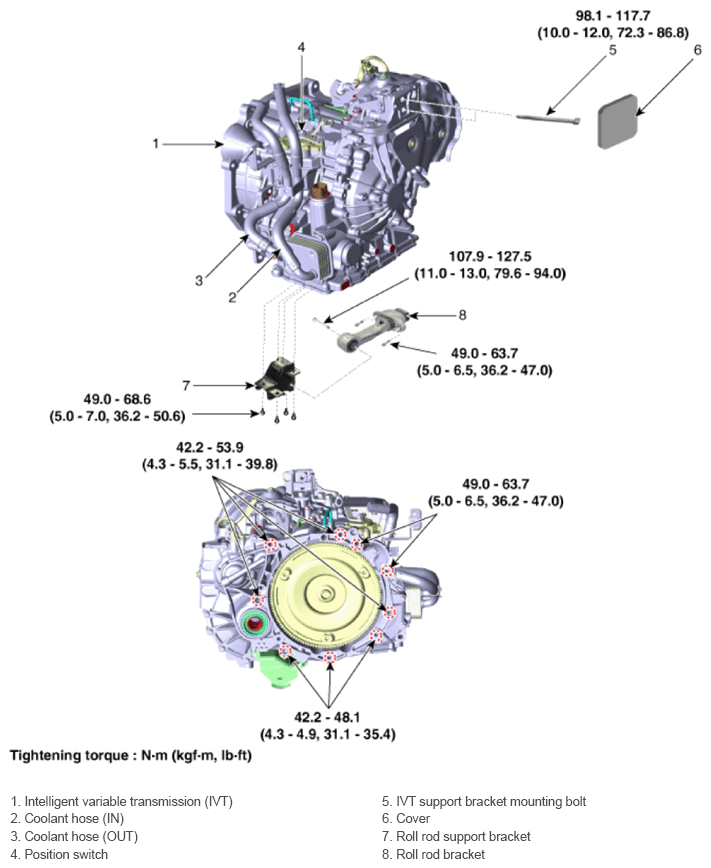

Fig 1: Intelligent Variable Transmission Components Location With Torque Specification
G14694764Courtesy of HYUNDAI MOTOR AMERICA
