Repair Procedures: Inspection

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  2. Remove the air cleaner and air duct.

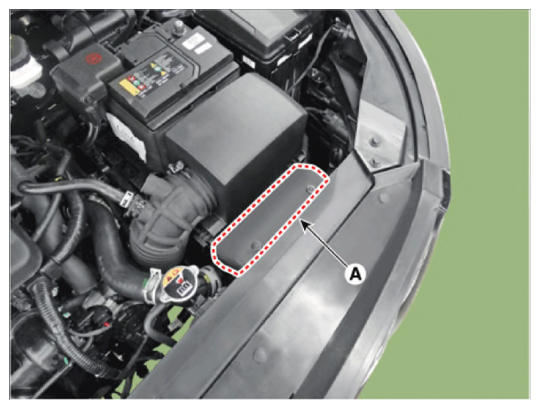

    1. Remove the air duct (A).
      G14694688Courtesy of HYUNDAI MOTOR AMERICA

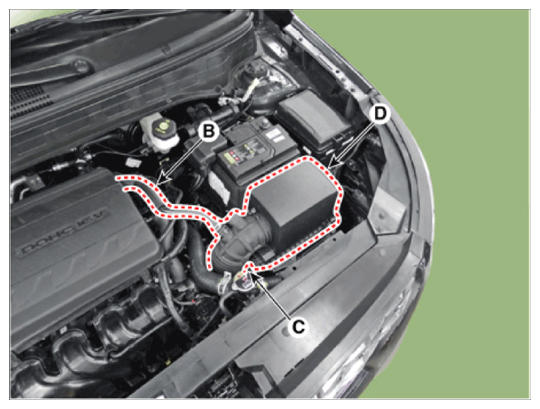

    2. Disconnect the breather hose (B) and air intake hose (C).
    3. Remove the air cleaner assembly (D).

      Tightening torque:

      Hose clamp bolt (C):

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts (D):

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

      G14694689Courtesy of HYUNDAI MOTOR AMERICA

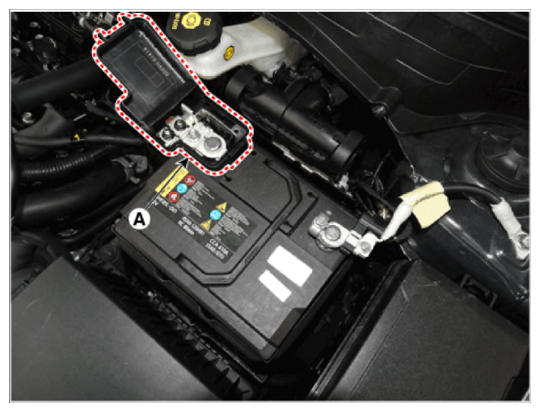

  3. Remove the battery (+) terminal (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14694690Courtesy of HYUNDAI MOTOR AMERICA

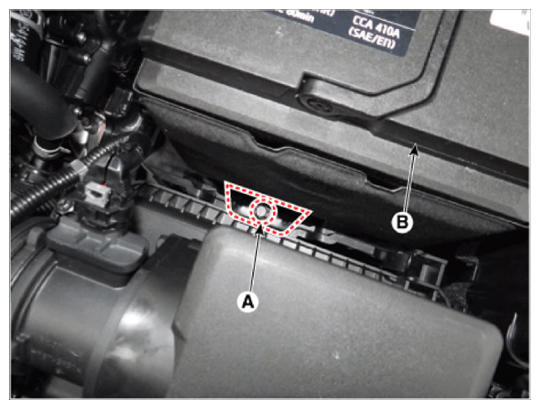

  4. Remove the battery mounting bracket (A) and the battery (B).

    Tightening torque:

    9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 lb-ft)

    G14694691Courtesy of HYUNDAI MOTOR AMERICA

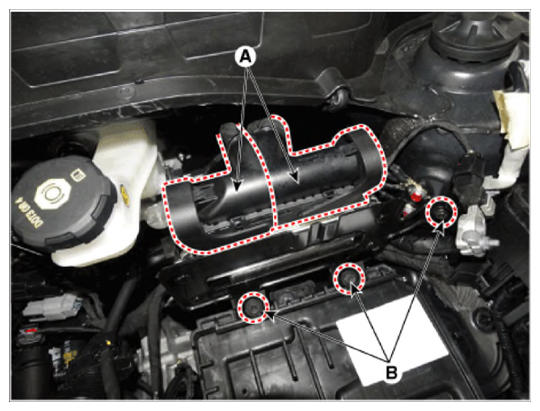

  5. Remove the ECM.
    1. Disconnect the ECM connector (A).
    2. Loosen the mounting bolts (B) and then removing the ECM bracket assembly.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

      G14694692Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery tray.
    1. Loosen the mounting bolt (A) and then removing the battery (+) terminal bracket.

      Tightening torque:

      8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

      G14694693Courtesy of HYUNDAI MOTOR AMERICA

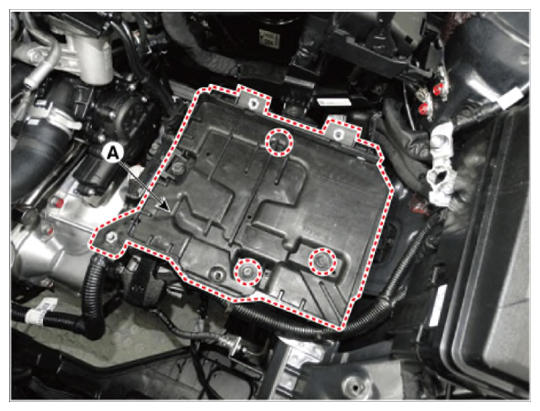

    2. Loosen the bolts and then removing the battery tray (A).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)

    G14694694Courtesy of HYUNDAI MOTOR AMERICA

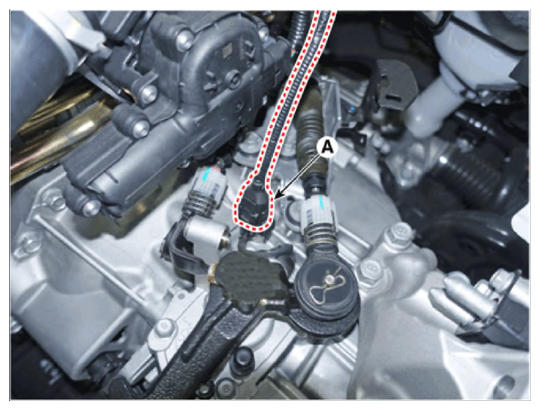

  7. Disconnect the back-up lamp switch connector (A).
    G14694695Courtesy of HYUNDAI MOTOR AMERICA

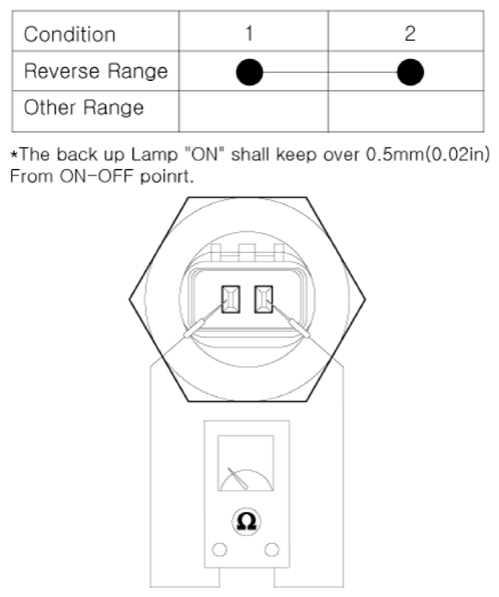

  8. Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.
    G14694696Courtesy of HYUNDAI MOTOR AMERICA
