Repair Procedures: Replacement

  1. Turn OFF ignition switch and disconnect the negative (-) battery cable.
  2. Remove the air cleaner and air duct.

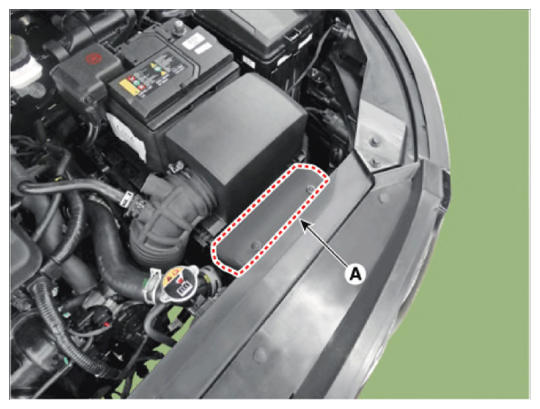

    1. Remove the air duct (A).
      G14694697Courtesy of HYUNDAI MOTOR AMERICA

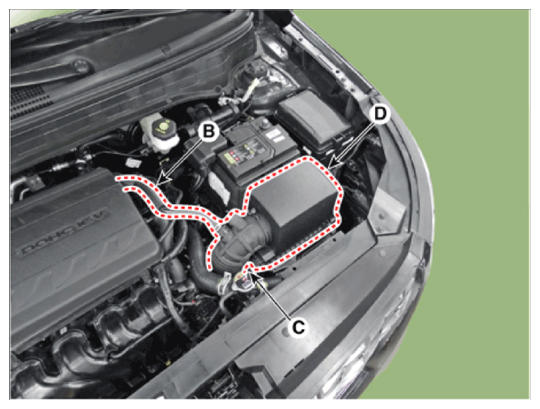

    2. Disconnect the breather hose (B) and air intake hose (C).
    3. Remove the air cleaner assembly (D).

      Tightening torque:

      Hose clamp bolt (C):

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts (D):

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 Ib-ft)

      G14694698Courtesy of HYUNDAI MOTOR AMERICA

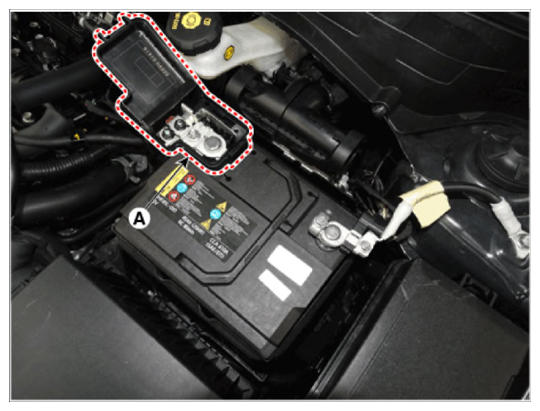

  3. Remove the battery (+) terminal (A).

    Tightening torque:

    7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb-ft)

    G14694699Courtesy of HYUNDAI MOTOR AMERICA

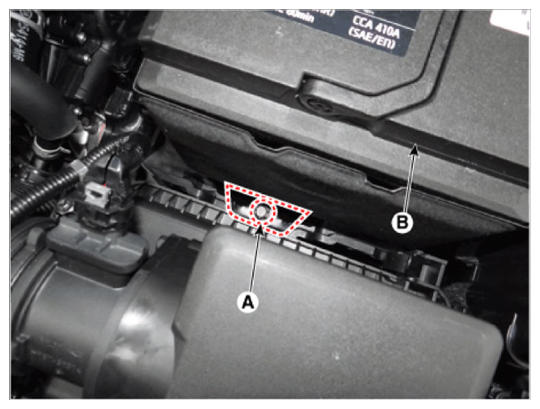

  4. Remove the battery mounting bracket (A) and the battery (B).

    Tightening torque:

    9.0 - 14.0 N.m (0.9 - 1.4 kgf.m, 6.6 - 10.3 Ib-ft)

    G14694700Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the ECM.

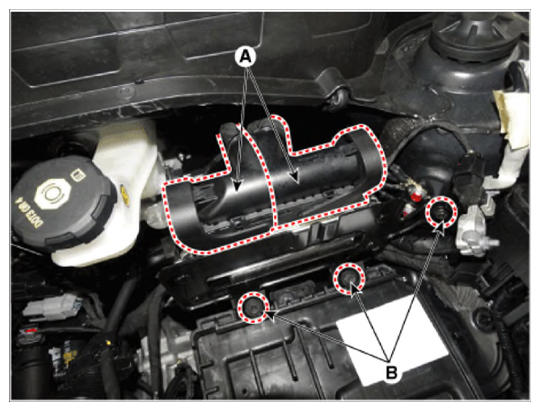

    1. Disconnect the ECM connector (A).
    2. Loosen the mounting bolts (B) and then removing the ECM bracket assembly.

      Tightening torque:

      9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

    G14694701Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the battery tray.
    1. Loosen the mounting bolt (A) and then removing the battery (+) terminal bracket.

      Tightening torque:

      8.0 - 10.0 N.m (0.8 - 1.0 kgf.m, 5.9 - 7.4 lb-ft)

      G14694702Courtesy of HYUNDAI MOTOR AMERICA

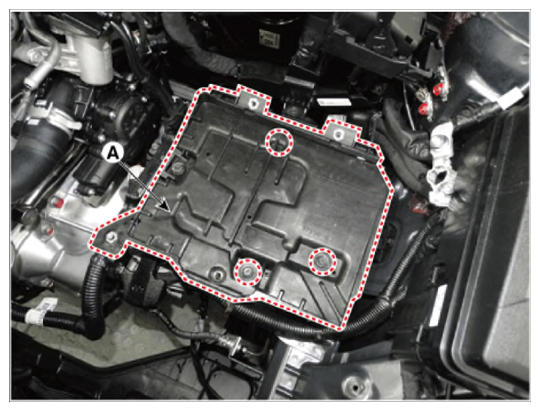

    2. Loosen the bolts and then removing the battery tray (A).

      Tightening torque:

      8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 Ib-ft)

    G14694703Courtesy of HYUNDAI MOTOR AMERICA

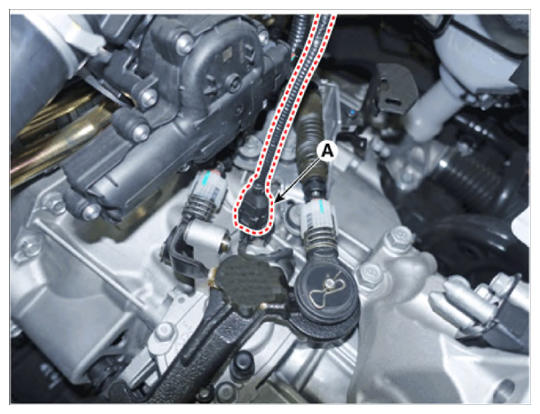

  7. Disconnect the back-up lamp switch connector (A).
    G14694704Courtesy of HYUNDAI MOTOR AMERICA

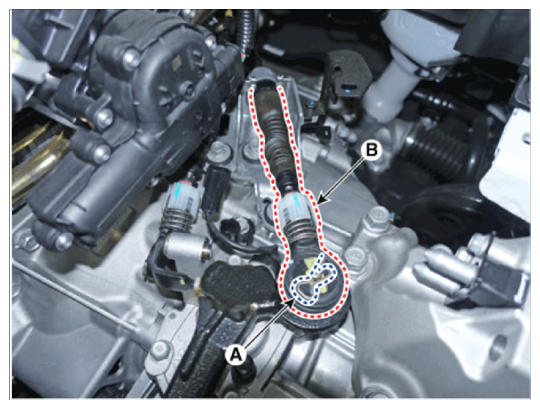

  8. Remove the snap pin (A) and then separate the shift cable (B).
    G14694705Courtesy of HYUNDAI MOTOR AMERICA

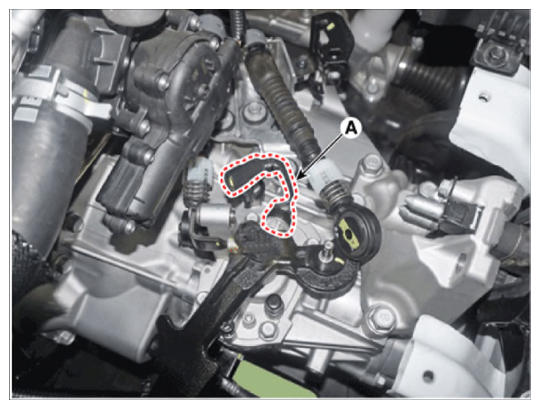

  9. Replace a new one and install the back up lamp switch (A).

    Tightening torque:

    39.2 - 58.8 N.m (4.0 - 6.0 kgf.m, 28.9 - 43.4 lb-ft)

    G14694706Courtesy of HYUNDAI MOTOR AMERICA
