Repair Procedures: Installation

  1. To install, reverse the removal procedure.
  2. Connect self-diagnosis connector (16 pins) located in the lower of driver side crash pad to self-diagnosis device.

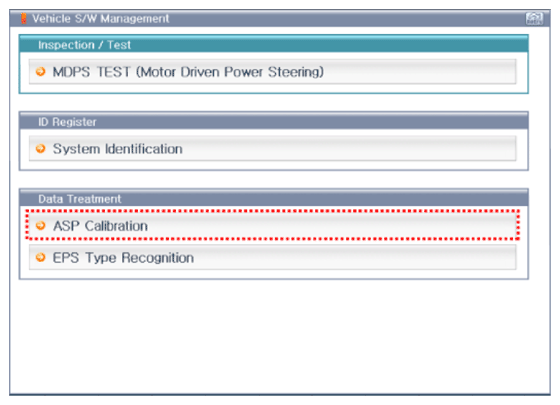

  3. Conduct the "ASP Calibration".
    G14077664Courtesy of HYUNDAI MOTOR AMERICA

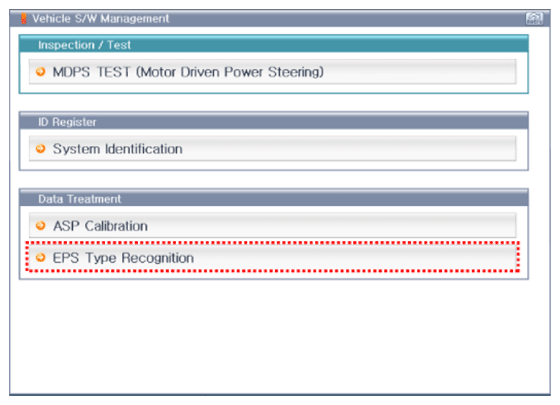

  4. Conduct the "EPS Type Recognition".
    G14077665Courtesy of HYUNDAI MOTOR AMERICA
