Repair Procedures: Removal

  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.

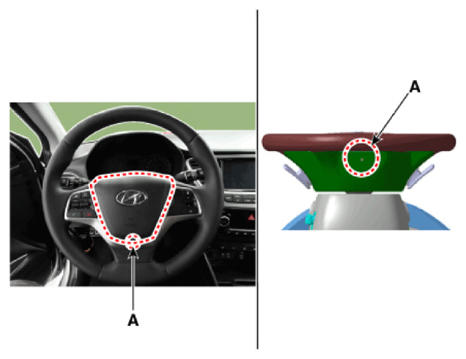

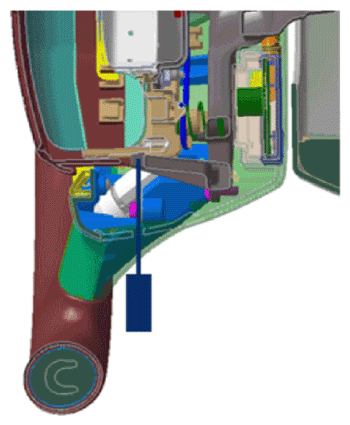

  2. Put a flat tool (Ø4 mm) into a guide hole located in the bottom of steering wheel and press a spring.
    G14077641Courtesy of HYUNDAI MOTOR AMERICA
    G14077642Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When put a tool into a hole, make sure not to damage an airbag cushion by tool.
  3. Turn a steering wheel anti-clockwise, so make a guide hole (A) shown in illustration on the right side.

    Put a tool into a hole (A) and bend back a fixed DAB spring.

    Make sure to pull DAB cover when bend back the spring.

    G14077643Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Pull the DAB cover when disengaging the DAB spring because the DAB does not pop up automatically.

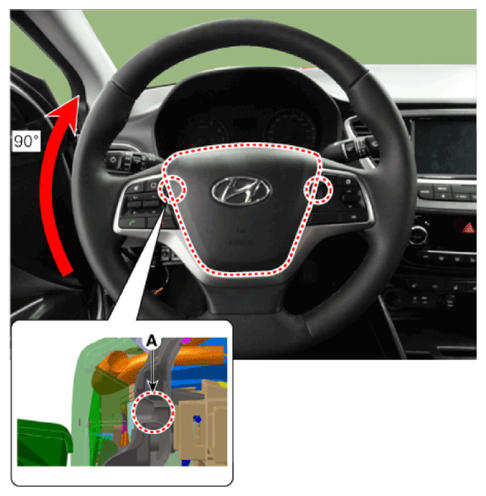

  4. Turn a steering wheel clockwise. Put a tool into a hole (A) and bend back a fixed DAB spring. Make sure to pull DAB cover.
    G14077644Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • Be careful not to put a tool into a wrong hole.

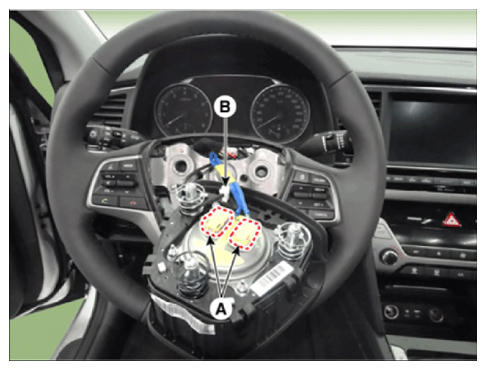

  5. Release the connector locking pin, then disconnect the driver airbag module connector (A) and horn connector (B).
    G14077645Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • The removed airbag module should be stored in a clean, dry place with the pad cover facing up.

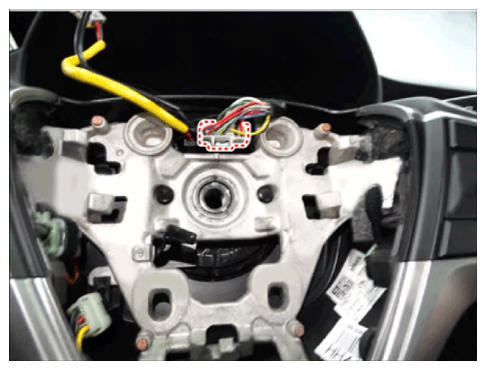

  6. Disconnect the clock spring connector.
    G14077646Courtesy of HYUNDAI MOTOR AMERICA

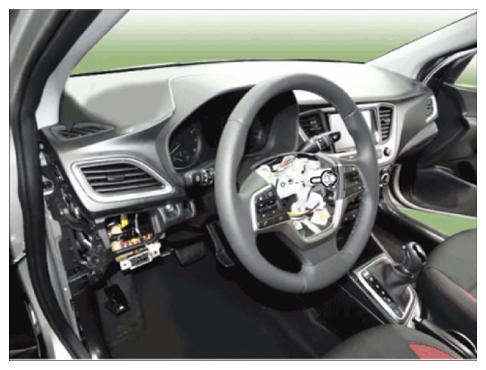

  7. Remove the steering wheel by loosening the lock bolt (A).
    G14077647Courtesy of HYUNDAI MOTOR AMERICA
  8. Remove the steering column upper shroud (A).
    G14077648Courtesy of HYUNDAI MOTOR AMERICA

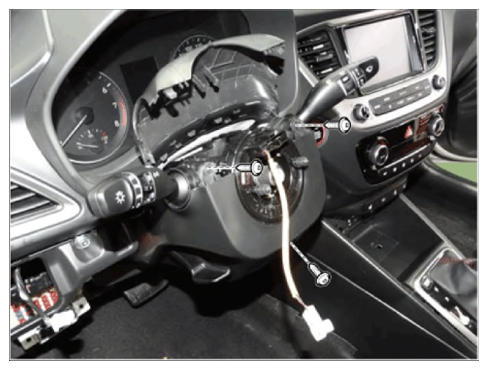

  9. Loosen the screw and then remove the lower shroud.
    G14077649Courtesy of HYUNDAI MOTOR AMERICA

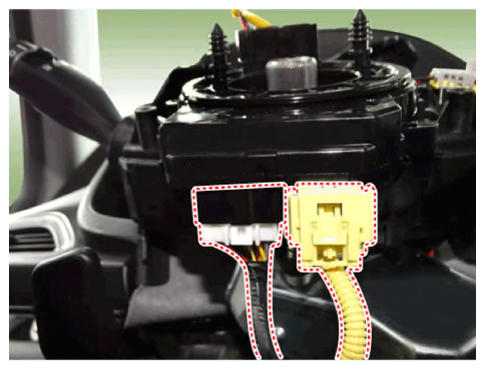

  10. Disconnect the connector.
    G14077650Courtesy of HYUNDAI MOTOR AMERICA

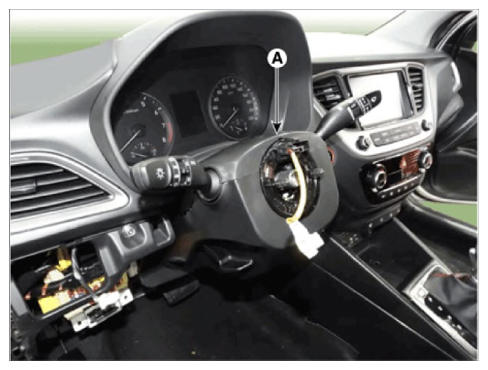

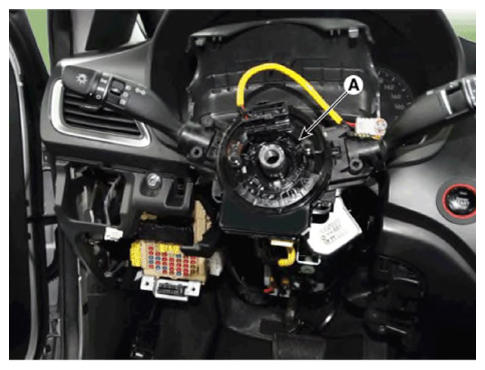

  11. Remove the clock spring (A).
    G14077651Courtesy of HYUNDAI MOTOR AMERICA

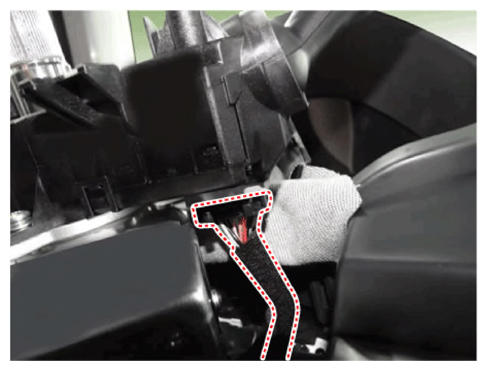

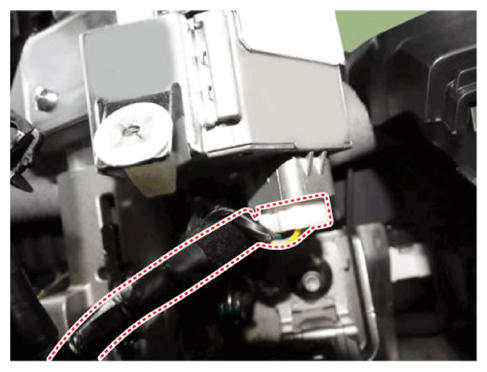

  12. Disconnect the multifunction switch connector.
    G14077652Courtesy of HYUNDAI MOTOR AMERICA
    G14077653Courtesy of HYUNDAI MOTOR AMERICA

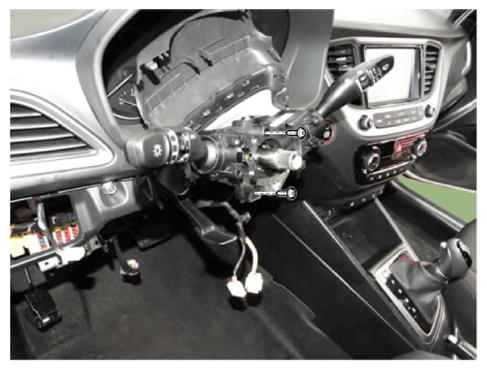

  13. Loosen the screw and then remove the multifunction switch.
    G14077654Courtesy of HYUNDAI MOTOR AMERICA
  14. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

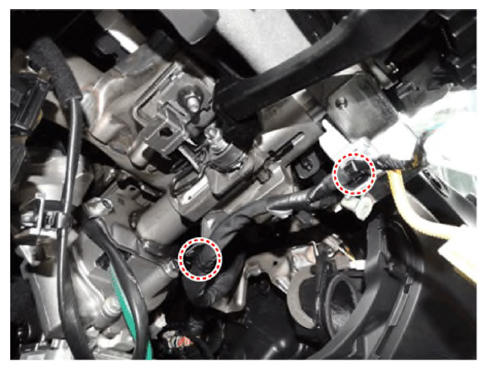

  15. Remove the fixed clip and then remove the wiring from the steering column.
    G14077655Courtesy of HYUNDAI MOTOR AMERICA

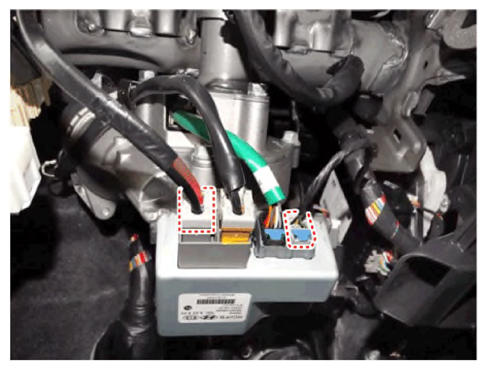

  16. Disconnect MDPS ECU connector.
    G14077656Courtesy of HYUNDAI MOTOR AMERICA

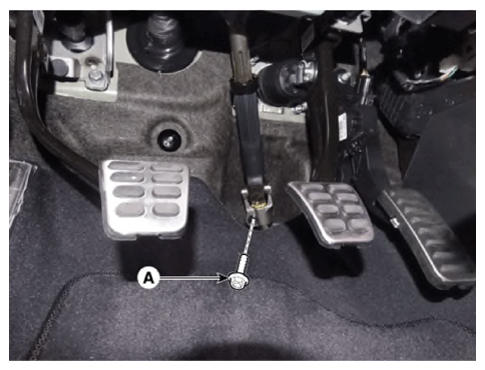

  17. Loosen the bolt (A) and then disconnect the universal joint assembly from the pinion of the steering gear box.

    Tightening torque:

    M8 BOLT:  32.4 - 37.3 N.m (3.3 - 3.8 kgf.m, 23.9 - 27.5 lb-ft)

    M10 BOLT:  49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb-ft)

    G14077657Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse the bolt.
    • Lock the steering wheel in the straight ahead position to prevent the damage of the clock spring inner cable.

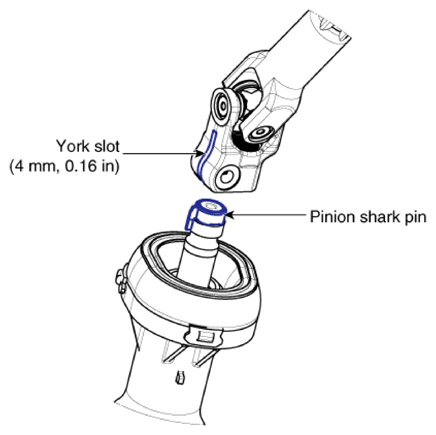

    • When assembling, insert the shark pin into the universal joint yoke slot as shown in illustration below.
    G14077658Courtesy of HYUNDAI MOTOR AMERICA

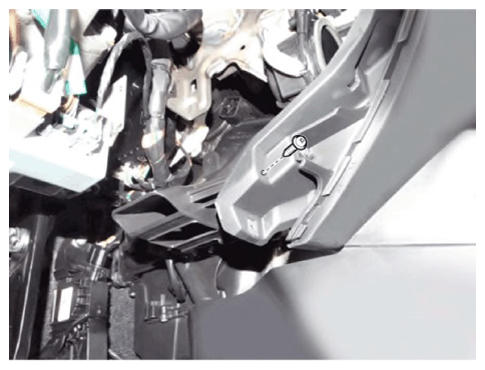

  18. Remove the shower duct.
    G14077659Courtesy of HYUNDAI MOTOR AMERICA

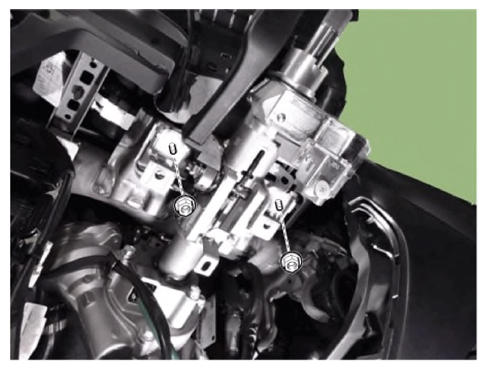

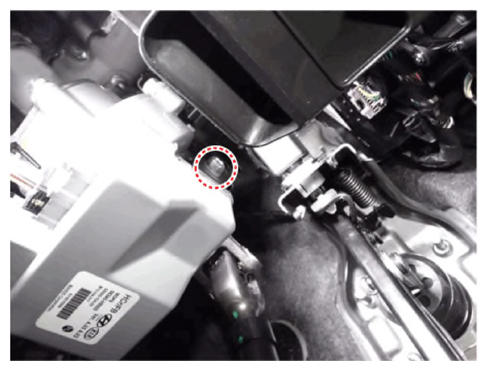

  19. Remove the steering column & EPS unit assembly by loosening the mounting bolt and nuts.

    Tightening torque

    Nut: 25.0 - 29.4 N.m (2.5 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

    Bolt: 44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb-ft)

    G14077660Courtesy of HYUNDAI MOTOR AMERICA
    G14077661Courtesy of HYUNDAI MOTOR AMERICA
