Repair Procedures: Replacement
- Disconnect the battery negative cable from the battery and then wait for at least 30 seconds.
- Remove the crash pad lower panel.
(Refer to Body - "CRASH PAD LOWER PANEL ")

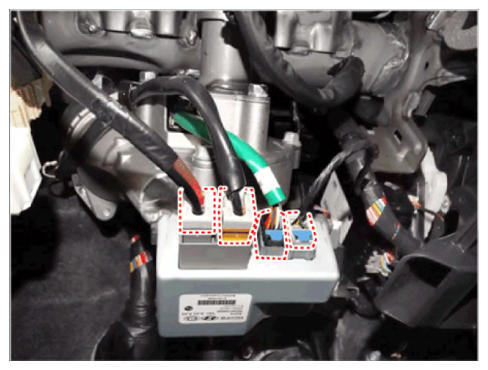

- Disconnect MDPS ECU connector.

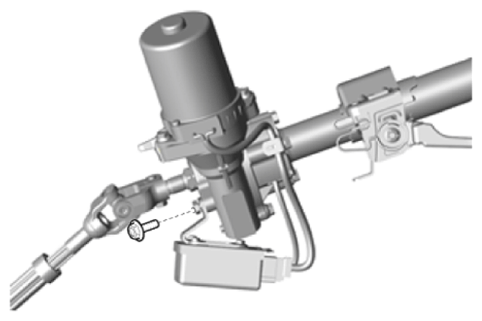

- Loosen the MDPS ECU bracket bolts and then remove the MDPS ECU.
