Trunk Open Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the inside rear combination lamp

    .(Refer to Lighting System - "REAR COMBINATION LAMP ")

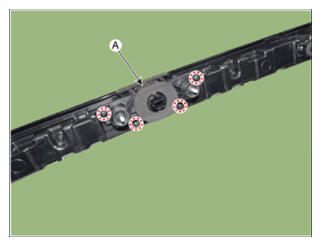

  3. Remove the trunk rid open switch assembly (A) after loosening mounting screws.
    G16178722Courtesy of HYUNDAI MOTOR AMERICA
